150244-5122-RB

Active

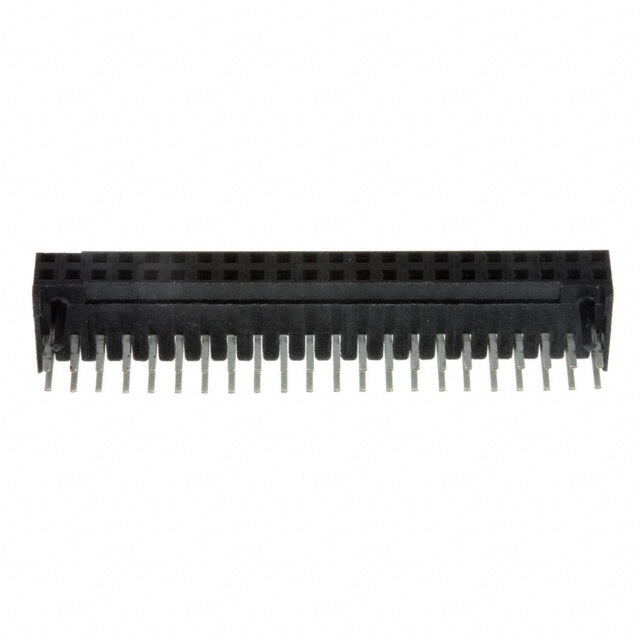

CONN RCPT 44P 0.079 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150244-5122-RB

Active

CONN RCPT 44P 0.079 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

150244 Series

44 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150244-5122-RB	150244 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Length - Post	-	3.18 mm
Contact Length - Post	-	0.125 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide, Pick and Place
Insulation Color	Black	Black
Insulation Height	-	0.177 - 0.183 "
Insulation Height	-	4.5 - 4.65 mm
Insulation Height [custom]	5.51 mm	5.51 mm
Insulation Height [custom]	0.217 in	0.217 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Surface Mount, Through Hole
Number of Positions	44	44
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150244 Series

CONN RCPT 44P 0.079 GOLD PCB R/A

Part	Number of Rows	Insulation Color	Material Flammability Rating	Connector Type	Number of Positions	Insulation Height [custom]	Insulation Height [custom]	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Contact Shape	Insulation Material	Style	Features	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Termination	Contact Material	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
3M 150244-5122-RB	2	Black	UL94 V-0	Receptacle	44	5.51 mm	0.217 in	Female Socket	0.079 in	2 mm	Through Hole, Right Angle	Square	Thermoplastic	Board to Board, Cable	Board Guide	Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V	2.54 mm	0.1 in	105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy
3M 150244-5022-RB	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Through Hole, Right Angle	Square	Thermoplastic	Board to Board, Cable	Board Guide	Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V	2.54 mm	0.1 in	105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.179 "	4.55 mm
3M 150244-5222-RB	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Through Hole, Right Angle	Square	Thermoplastic	Board to Board, Cable	Board Guide	Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V			105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy			3.18 mm	0.125 in
3M 150244-2020-RB	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Surface Mount	Square	Thermoplastic	Board to Board, Cable	Board Guide	Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V			105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.183 in	4.65 mm
3M 150244-6002-TH	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Through Hole	Square	Thermoplastic	Board to Board, Cable		Gold	200 µin	5.08 µm	All	Tin-Lead	0.079 in	2 mm	15 µin	0.38 µm	500 V	2.54 mm	0.1 in	105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.177 in	4.5 mm
3M 150244-2000-RB	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Surface Mount	Square	Thermoplastic	Board to Board, Cable		Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V			105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.183 in	4.65 mm
3M 150244-2000-RB-WF	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Surface Mount	Square	Thermoplastic	Board to Board, Cable	Pick and Place	Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V			105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.183 in	4.65 mm
3M 150244-6002-TB	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Through Hole	Square	Thermoplastic	Board to Board, Cable		Gold	200 µin	5.08 µm	All	Tin-Lead	0.079 in	2 mm	30 Áin	0.76 Ám	500 V	2.54 mm	0.1 in	105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.177 in	4.5 mm
3M 150244-2020-TH	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Surface Mount	Square	Thermoplastic	Board to Board, Cable	Board Guide	Gold	200 µin	5.08 µm	All	Tin-Lead	0.079 in	2 mm	15 µin	0.38 µm	500 V			105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.183 in	4.65 mm
