150244-2020-RB

Active

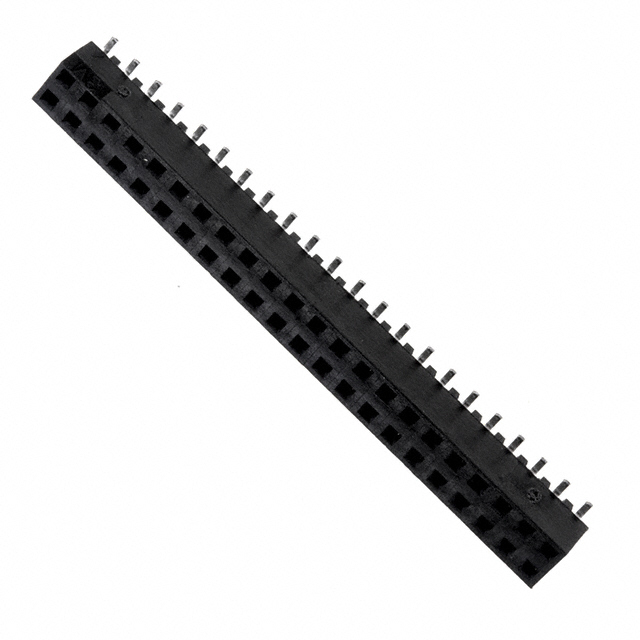

CONN RCPT 44POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150244-2020-RB

Active

CONN RCPT 44POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150244-2020-RB	150244 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.54 mm
Contact Length - Post	-	0.1 in
Contact Length - Post	-	3.18 mm
Contact Length - Post	-	0.125 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide, Pick and Place
Insulation Color	Black	Black
Insulation Height	4.65 mm	4.5 - 4.65 mm
Insulation Height	0.183 in	0.177 - 0.183 "
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Right Angle, Surface Mount, Through Hole
Number of Positions	44	44
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150244 Series

CONN RCPT 44P 0.079 GOLD PCB R/A

Part	Number of Rows	Insulation Color	Material Flammability Rating	Connector Type	Number of Positions	Insulation Height [custom]	Insulation Height [custom]	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Contact Shape	Insulation Material	Style	Features	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Termination	Contact Material	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
3M 150244-5122-RB	2	Black	UL94 V-0	Receptacle	44	5.51 mm	0.217 in	Female Socket	0.079 in	2 mm	Through Hole, Right Angle	Square	Thermoplastic	Board to Board, Cable	Board Guide	Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V	2.54 mm	0.1 in	105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy
3M 150244-5022-RB	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Through Hole, Right Angle	Square	Thermoplastic	Board to Board, Cable	Board Guide	Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V	2.54 mm	0.1 in	105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.179 "	4.55 mm
3M 150244-5222-RB	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Through Hole, Right Angle	Square	Thermoplastic	Board to Board, Cable	Board Guide	Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V			105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy			3.18 mm	0.125 in
3M 150244-2020-RB	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Surface Mount	Square	Thermoplastic	Board to Board, Cable	Board Guide	Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V			105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.183 in	4.65 mm
3M 150244-6002-TH	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Through Hole	Square	Thermoplastic	Board to Board, Cable		Gold	200 µin	5.08 µm	All	Tin-Lead	0.079 in	2 mm	15 µin	0.38 µm	500 V	2.54 mm	0.1 in	105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.177 in	4.5 mm
3M 150244-2000-RB	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Surface Mount	Square	Thermoplastic	Board to Board, Cable		Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V			105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.183 in	4.65 mm
3M 150244-2000-RB-WF	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Surface Mount	Square	Thermoplastic	Board to Board, Cable	Pick and Place	Gold	200 µin	5.08 µm	All	Tin	0.079 in	2 mm	30 Áin	0.76 Ám	500 V			105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.183 in	4.65 mm
3M 150244-6002-TB	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Through Hole	Square	Thermoplastic	Board to Board, Cable		Gold	200 µin	5.08 µm	All	Tin-Lead	0.079 in	2 mm	30 Áin	0.76 Ám	500 V	2.54 mm	0.1 in	105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.177 in	4.5 mm
3M 150244-2020-TH	2	Black	UL94 V-0	Receptacle	44			Female Socket	0.079 in	2 mm	Surface Mount	Square	Thermoplastic	Board to Board, Cable	Board Guide	Gold	200 µin	5.08 µm	All	Tin-Lead	0.079 in	2 mm	15 µin	0.38 µm	500 V			105 ░C	-55 °C	Push-Pull	Solder	Copper Alloy	0.183 in	4.65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.29
		84	$ 5.77
		504	$ 4.86
		1008	$ 4.25

Description

General part information

150244 Series

44 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
