Q-2C05G0005060i
ActiveAmphenol Custom Cable

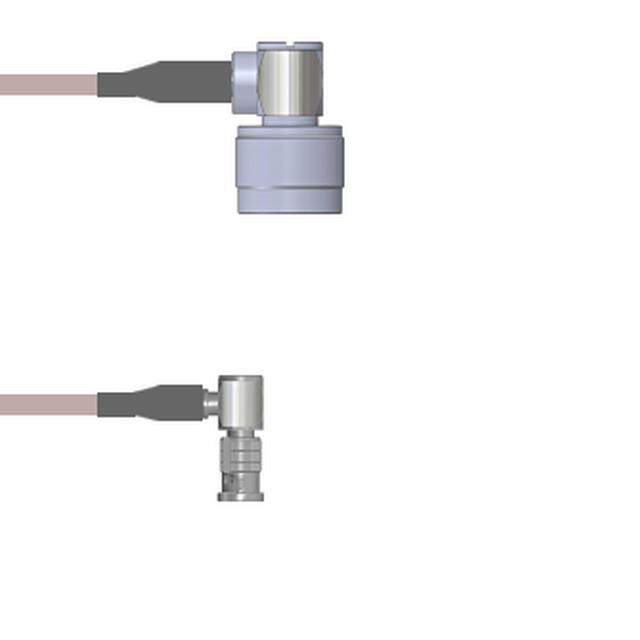

COAX CBL HD-BNC TO N-TYPE 5'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2C05G0005060i
ActiveAmphenol Custom Cable
COAX CBL HD-BNC TO N-TYPE 5'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2C05G0005060i |
|---|---|
| 1st Connector | HD-BNC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 5 ft |
| Length | 1.5 m |
| Length | 5 ' |
| Overall Impedance | 50 Ohms |
| Style | HD-BNC to N-Type |
Q-2C05G0 Series
| Part | 1st Contact Gender | Length | Length | Length | Color | Style | Overall Impedance | 2nd Contact Gender | 1st Connector Mounting Type | 1st Connector | Features | 2nd Connector | Cable Type | Frequency - Max [Max] | 2nd Connector Mounting Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Male | 59.1 in | 4.9 ft | 1.5 m | Black | HD-BNC to N-Type | 50 Ohms | Male | Free Hanging (In-Line) | HD-BNC Plug Right Angle | Shielded | N-Type Plug Right Angle | RG-174 | 6000 MHz | Free Hanging (In-Line) | ||
Amphenol Custom Cable | Male | Black | HD-BNC to N-Type | 50 Ohms | Male | Free Hanging (In-Line) | HD-BNC Plug Right Angle | Shielded | N-Type Plug Right Angle | RG-174 | 6000 MHz | Free Hanging (In-Line) | 9.843 " | 250 mm | |||
Amphenol Custom Cable | Male | 19.69 " | 50 cm | Copper | HD-BNC to N-Type | 50 Ohms | Male | Free Hanging (In-Line) | HD-BNC Plug Right Angle | Shielded | N-Type Plug Right Angle | RG-316 | 6000 MHz | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Male | 12 " | 304.8 mm | Black | HD-BNC to N-Type | 50 Ohms | Male | Free Hanging (In-Line) | HD-BNC Plug Right Angle | Shielded | N-Type Plug Right Angle | RG-174 | 6000 MHz | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Male | 39.4 in | 3.3 ft | 1 m | Black | HD-BNC to N-Type | 50 Ohms | Male | Free Hanging (In-Line) | HD-BNC Plug Right Angle | Shielded | N-Type Plug Right Angle | RG-174 | 6000 MHz | Free Hanging (In-Line) | ||
Amphenol Custom Cable | Male | 12 " | 304.8 mm | Copper | HD-BNC to N-Type | 50 Ohms | Male | Free Hanging (In-Line) | HD-BNC Plug Right Angle | Shielded | N-Type Plug Right Angle | RG-316 | 6000 MHz | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Male | 24 " | 609.6 mm | Black | HD-BNC to N-Type | 50 Ohms | Male | Free Hanging (In-Line) | HD-BNC Plug Right Angle | Shielded | N-Type Plug Right Angle | RG-174 | 6000 MHz | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Male | 5 ' | 5 ft | 1.5 m | Black | HD-BNC to N-Type | 50 Ohms | Male | Free Hanging (In-Line) | HD-BNC Plug Right Angle | Shielded | N-Type Plug Right Angle | RG-174 | 6000 MHz | Free Hanging (In-Line) | ||
Amphenol Custom Cable | Male | 5 ' | 5 ft | 1.5 m | Copper | HD-BNC to N-Type | 50 Ohms | Male | Free Hanging (In-Line) | HD-BNC Plug Right Angle | Shielded | N-Type Plug Right Angle | RG-316 | 6000 MHz | Free Hanging (In-Line) | ||
Amphenol Custom Cable | Male | 9 " | 228.6 mm | Copper | HD-BNC to N-Type | 50 Ohms | Male | Free Hanging (In-Line) | HD-BNC Plug Right Angle | Shielded | N-Type Plug Right Angle | RG-316 | 6000 MHz | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 154.52 | |
| 25 | $ 151.55 | |||
| 50 | $ 148.57 | |||
| 100 | $ 145.60 | |||
| 250 | $ 142.63 | |||
Description
General part information
Q-2C05G0 Series
Cable Assembly Coaxial HD-BNC to N-Type RG-316 60.0" (1.5m) 5.0'
Documents
Technical documentation and resources
No documents available
