Q-2C05G0003060i

Active

Amphenol Custom Cable

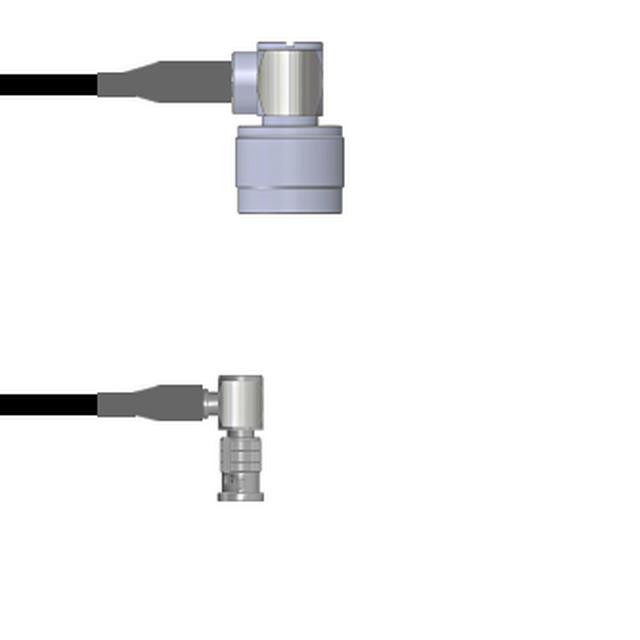

CBL ASSY HDBNC-NTYPE PLUG-PLG 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C05G0003060i

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE PLUG-PLG 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C05G0003060i

1st Connector	HD-BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-2C05G0 Series

Part	1st Contact Gender	Length	Length	Length	Color	Style	Overall Impedance	2nd Contact Gender	1st Connector Mounting Type	1st Connector	Features	2nd Connector	Cable Type	Frequency - Max [Max]	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-2C05G00031.5M	Male	59.1 in	4.9 ft	1.5 m	Black	HD-BNC to N-Type	50 Ohms	Male	Free Hanging (In-Line)	HD-BNC Plug Right Angle	Shielded	N-Type Plug Right Angle	RG-174	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C05G0003.25M	Male				Black	HD-BNC to N-Type	50 Ohms	Male	Free Hanging (In-Line)	HD-BNC Plug Right Angle	Shielded	N-Type Plug Right Angle	RG-174	6000 MHz	Free Hanging (In-Line)	9.843 "	250 mm
Amphenol Custom Cable Q-2C05G00050.5M	Male	19.69 "		50 cm	Copper	HD-BNC to N-Type	50 Ohms	Male	Free Hanging (In-Line)	HD-BNC Plug Right Angle	Shielded	N-Type Plug Right Angle	RG-316	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C05G0003012i	Male	12 "		304.8 mm	Black	HD-BNC to N-Type	50 Ohms	Male	Free Hanging (In-Line)	HD-BNC Plug Right Angle	Shielded	N-Type Plug Right Angle	RG-174	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C05G0003001M	Male	39.4 in	3.3 ft	1 m	Black	HD-BNC to N-Type	50 Ohms	Male	Free Hanging (In-Line)	HD-BNC Plug Right Angle	Shielded	N-Type Plug Right Angle	RG-174	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C05G0005012i	Male	12 "		304.8 mm	Copper	HD-BNC to N-Type	50 Ohms	Male	Free Hanging (In-Line)	HD-BNC Plug Right Angle	Shielded	N-Type Plug Right Angle	RG-316	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C05G0003024i	Male	24 "		609.6 mm	Black	HD-BNC to N-Type	50 Ohms	Male	Free Hanging (In-Line)	HD-BNC Plug Right Angle	Shielded	N-Type Plug Right Angle	RG-174	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C05G0003060i	Male	5 '	5 ft	1.5 m	Black	HD-BNC to N-Type	50 Ohms	Male	Free Hanging (In-Line)	HD-BNC Plug Right Angle	Shielded	N-Type Plug Right Angle	RG-174	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C05G0005060i	Male	5 '	5 ft	1.5 m	Copper	HD-BNC to N-Type	50 Ohms	Male	Free Hanging (In-Line)	HD-BNC Plug Right Angle	Shielded	N-Type Plug Right Angle	RG-316	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C05G0005009i	Male	9 "		228.6 mm	Copper	HD-BNC to N-Type	50 Ohms	Male	Free Hanging (In-Line)	HD-BNC Plug Right Angle	Shielded	N-Type Plug Right Angle	RG-316	6000 MHz	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 137.08
		25	$ 134.46
		50	$ 131.84
		100	$ 129.22
		250	$ 126.60

Description

General part information

Q-2C05G0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-174 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
