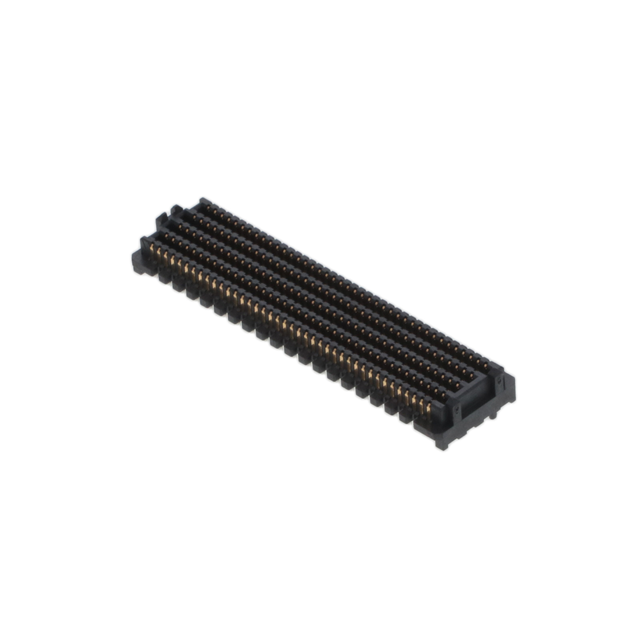

SEAM-40-03.0-S-10-2-A-K-TR

SEAM-40-03.0-S-10-2-A-K-TR

Active
Samtec Inc.

CONN HD ARRAY PLUG 400P SMD GOLD

Find alt
SEAM-40-03.0-S-10-2-A-K-TR

SEAM-40-03.0-S-10-2-A-K-TR

Active
Samtec Inc.

CONN HD ARRAY PLUG 400P SMD GOLD

Find alt

Description

General part information

SEAM-40 Series

400 Position Connector High Density Array, Male Surface Mount Gold

Technical Specifications

Parameters and characteristics for this part

SpecificationSEAM-40-03.0-S-10-2-A-K-TR
Connector TypeMALE, High Density Array
Contact FinishGold
Contact Finish Thickness30 µin
FeaturesBoard Guide, Pick and Place
Height Above Board0.22 in
Mated Stacking Height Options10.5mm, 9mm, 8mm, 9.5mm
Mounting TypeSurface Mount
Number of Positions400
Number of Rows10
Pitch0.05 in
