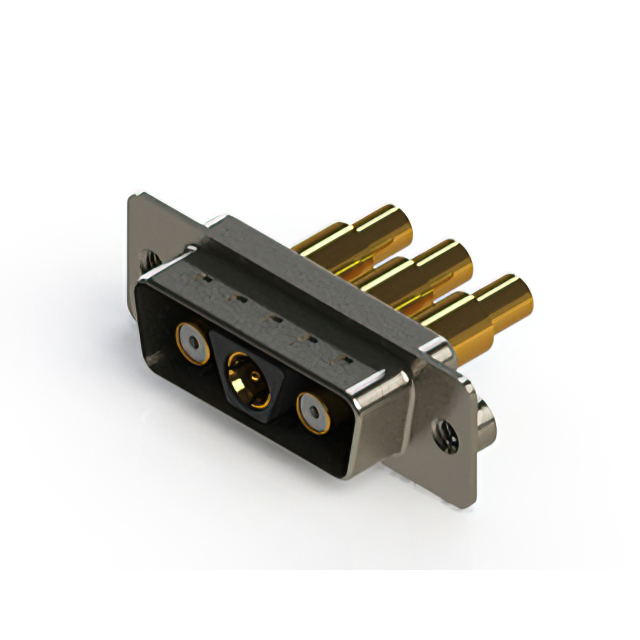

627-3WK3222-5NA

Active

EDAC Inc.

CONN D-SUB PLUG 3POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-3WK3222-5NA

Active

EDAC Inc.

CONN D-SUB PLUG 3POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-3WK3222-5NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 3WK3
Voltage Rating	125 VDC

627-3WK Series

...

Part	Voltage Rating	Color	Features	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Flange Feature	Shell Material, Finish	Current Rating (Amps)	Connector Style	Mounting Type	Dielectric Material	Number of Positions	Material Flammability Rating	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 627-3WK3624-2NE	125 VDC	Black	Board Lock Grounding Indents Shielded	Gold	Copper Alloy	0.76 Ám	30 Áin	2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power	Solder	M3	Nickel Plated Steel	20 A	Combo D-Sub	Panel Mount Through Hole	Polyester Thermoplastic	3	UL94 V-0
EDAC Inc. 627-3WK3222-5NA	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power		Board Side (M3)	Nickel Plated Steel		Combo D-Sub	Free Hanging (In-Line)	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3222-2TA	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power		Board Side (M3)		20 A	Combo D-Sub	Free Hanging (In-Line)	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3222-1T2	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power		4-40 Board Side		10 A	Combo D-Sub	Free Hanging (In-Line)	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3224-1N5	125 VDC	Black	Board Lock Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power	Solder	4-40 Board Side	Nickel Plated Steel	10 A	Combo D-Sub	Through Hole	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3224-1TC	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power	Solder			10 A	Combo D-Sub	Panel Mount Through Hole	Polyester Thermoplastic	3	UL94 V-0	Flash	M3	M3
EDAC Inc. 627-3WK3222-4T2	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power		4-40 Board Side		40 A	Combo D-Sub	Free Hanging (In-Line)	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3224-1NE	125 VDC	Black	Board Lock Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power	Solder	M3	Nickel Plated Steel	10 A	Combo D-Sub	Panel Mount Through Hole	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3224-1TA	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power	Solder	Board Side (M3)		10 A	Combo D-Sub	Panel Mount Through Hole	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3222-5N1	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power		Housing/Shell (Unthreaded)	Nickel Plated Steel		Combo D-Sub	Free Hanging (In-Line)	Polyester Thermoplastic	3	UL94 V-0	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.93

Description

General part information

627-3WK Series

3 (Coax) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector

Documents

Technical documentation and resources
