627-3WK3224-1N5

Active

EDAC Inc.

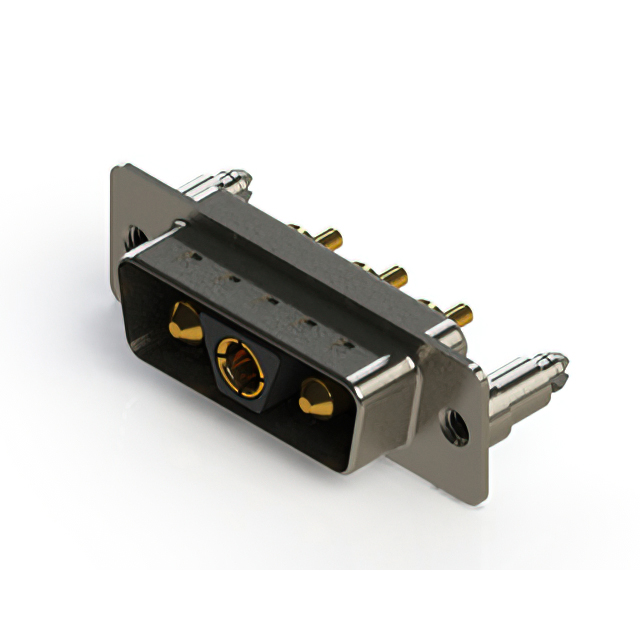

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DA-3W3K, PLUG, 3 CONTACTS, 3 POWER, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

627-3WK3224-1N5

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DA-3W3K, PLUG, 3 CONTACTS, 3 POWER, SOLDER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-3WK3224-1N5

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	10 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 3WK3
Termination	Solder
Voltage Rating	125 VDC

627-3WK Series

...

Part	Voltage Rating	Color	Features	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Flange Feature	Shell Material, Finish	Current Rating (Amps)	Connector Style	Mounting Type	Dielectric Material	Number of Positions	Material Flammability Rating	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 627-3WK3624-2NE	125 VDC	Black	Board Lock Grounding Indents Shielded	Gold	Copper Alloy	0.76 Ám	30 Áin	2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power	Solder	M3	Nickel Plated Steel	20 A	Combo D-Sub	Panel Mount Through Hole	Polyester Thermoplastic	3	UL94 V-0
EDAC Inc. 627-3WK3222-5NA	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power		Board Side (M3)	Nickel Plated Steel		Combo D-Sub	Free Hanging (In-Line)	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3222-2TA	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power		Board Side (M3)		20 A	Combo D-Sub	Free Hanging (In-Line)	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3222-1T2	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power		4-40 Board Side		10 A	Combo D-Sub	Free Hanging (In-Line)	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3224-1N5	125 VDC	Black	Board Lock Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power	Solder	4-40 Board Side	Nickel Plated Steel	10 A	Combo D-Sub	Through Hole	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3224-1TC	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power	Solder			10 A	Combo D-Sub	Panel Mount Through Hole	Polyester Thermoplastic	3	UL94 V-0	Flash	M3	M3
EDAC Inc. 627-3WK3222-4T2	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power		4-40 Board Side		40 A	Combo D-Sub	Free Hanging (In-Line)	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3224-1NE	125 VDC	Black	Board Lock Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power	Solder	M3	Nickel Plated Steel	10 A	Combo D-Sub	Panel Mount Through Hole	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3224-1TA	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power	Solder	Board Side (M3)		10 A	Combo D-Sub	Panel Mount Through Hole	Polyester Thermoplastic	3	UL94 V-0	Flash
EDAC Inc. 627-3WK3222-5N1	125 VDC	Black	Grounding Indents Shielded	Gold	Copper Alloy			2 (DA A) - 3WK3	Female Sockets Male Pins Plug	1	-55 °C	125 °C	Power		Housing/Shell (Unthreaded)	Nickel Plated Steel		Combo D-Sub	Free Hanging (In-Line)	Polyester Thermoplastic	3	UL94 V-0	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 5.89
Newark	Each	100	$ 6.14
		250	$ 5.99
		500	$ 5.78

Description

General part information

627-3WK Series

3 (Power) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector
