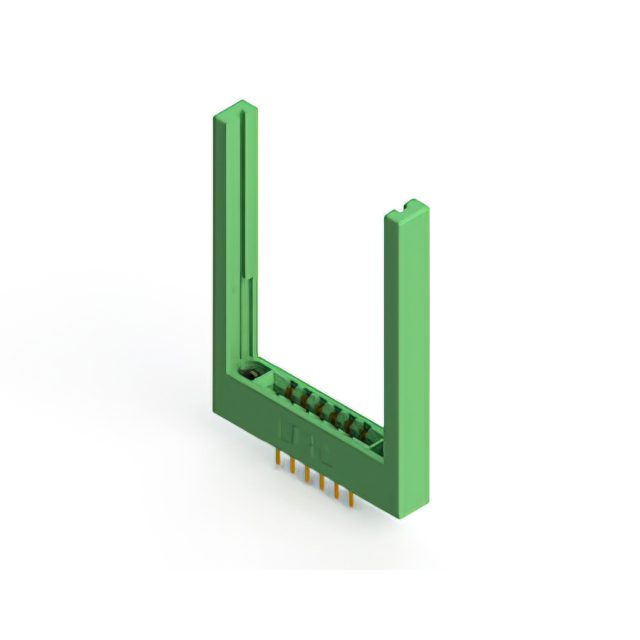

305-012-520-568
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
305-012-520-568
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-012-520-568 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-012 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Read Out | Number of Rows | Contact Type | Contact Material | Termination | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Flange Feature | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Termination Rows | Gender | Color | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | 6 | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Female | Green | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | 6 | Board Edge Straddle Mount | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Female | Green | Card Extender | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | 6 | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Female | Green | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | 6 | Flush Mount M3 Threaded Insert Top Opening | Board Edge Straddle Mount | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Female | Green | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Semi Bellows | Copper Alloy | Solder Eyelet(s) | 0.156 in | 3.96 mm | 6 | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Female | Green | 3.25 mm | 0.128 " | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | 6 | Flush Mount Top Opening Unthreaded | Panel Mount Through Hole | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Female | Green | 3.96 mm | 0.156 in | |
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | 6 | Board Edge Straddle Mount | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Female | Green | Card Extender | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Semi Bellows | Copper Alloy | Solder Eyelet(s) | 0.156 in | 3.96 mm | 6 | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Female | Green | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | 6 | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Female | Green | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Dual | 2 | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | 6 | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Female | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
305-012 Series
12 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
