305-012-500-202

Active

EDAC Inc.

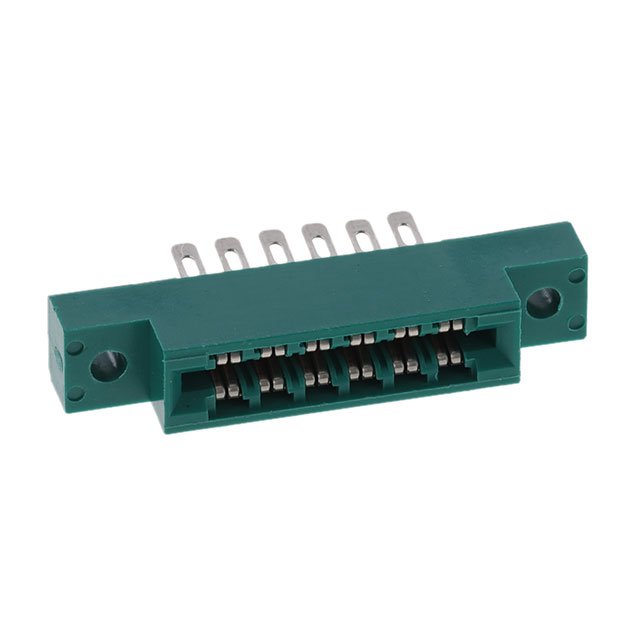

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Solutions Brochure +1

305-012-500-202

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Interconnect Solutions Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	305-012-500-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	12
Number of Positions/Bay/Row [custom]	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

305-012 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Read Out	Number of Rows	Contact Type	Contact Material	Termination	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Flange Feature	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Termination Rows	Gender	Color	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 305-012-520-578	10 Áin	0.25 Ám	Gold	Dual	2	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	6	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	2	Female	Green
EDAC Inc. 305-012-556-201	10 Áin	0.25 Ám	Gold	Dual	2	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	6		Board Edge Straddle Mount	-40 °C	105 ░C	Non Specified - Dual Edge	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	2	Female	Green	Card Extender
EDAC Inc. 305-012-521-268	10 Áin	0.25 Ám	Gold	Dual	2	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	6	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	2	Female	Green
EDAC Inc. 305-012-555-207	10 Áin	0.25 Ám	Gold	Dual	2	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	6	Flush Mount M3 Threaded Insert Top Opening	Board Edge Straddle Mount	-40 °C	105 ░C	Non Specified - Dual Edge	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	2	Female	Green	Card Extender
EDAC Inc. 305-012-500-202	10 Áin	0.25 Ám	Gold	Dual	2	Semi Bellows	Copper Alloy	Solder Eyelet(s)	0.156 in	3.96 mm	6	Flush Mount Top Opening Unthreaded		-40 °C	105 ░C	Non Specified - Dual Edge	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	2	Female	Green		3.25 mm	0.128 "
EDAC Inc. 305-012-520-504	10 Áin	0.25 Ám	Gold	Dual	2	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	6	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	2	Female	Green		3.96 mm	0.156 in
EDAC Inc. 305-012-555-201	10 Áin	0.25 Ám	Gold	Dual	2	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	6		Board Edge Straddle Mount	-40 °C	105 ░C	Non Specified - Dual Edge	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	2	Female	Green	Card Extender
EDAC Inc. 305-012-500-207	10 Áin	0.25 Ám	Gold	Dual	2	Semi Bellows	Copper Alloy	Solder Eyelet(s)	0.156 in	3.96 mm	6	Flush Mount M3 Threaded Insert Top Opening		-40 °C	105 ░C	Non Specified - Dual Edge	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	2	Female	Green
EDAC Inc. 305-012-521-258	10 Áin	0.25 Ám	Gold	Dual	2	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	6	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	2	Female	Green
EDAC Inc. 305-012-520-568	10 Áin	0.25 Ám	Gold	Dual	2	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	6	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	-40 °C	105 ░C	Non Specified - Dual Edge	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	2	Female	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.52
		10	$ 4.99
		25	$ 4.72
		50	$ 4.60
		100	$ 4.37
		250	$ 4.05
Newark	Each	25	$ 6.97
		50	$ 6.81
		100	$ 6.48
		250	$ 6.32
		500	$ 6.10

Description

General part information

305-012 Series

12 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
