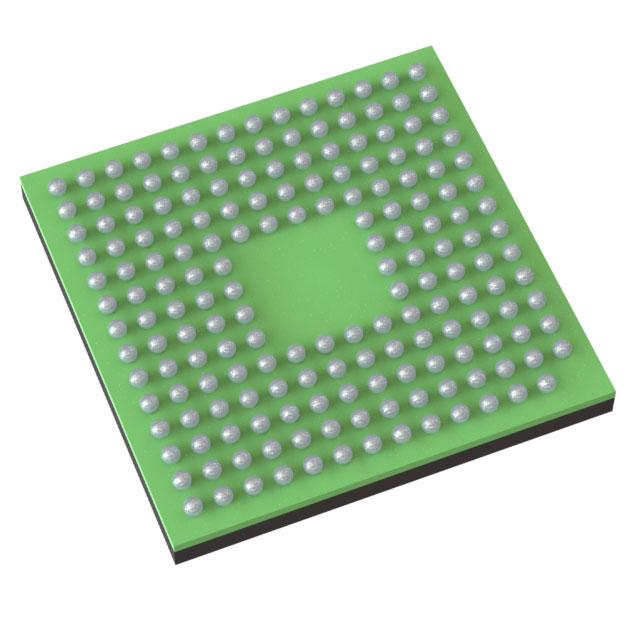

TMS320F28335ZAYA

Active

Texas Instruments

C2000™ 32-BIT MCU WITH 150 MIPS, FPU, 512 KB FLASH, EMIF, 12B ADC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Common Object File Format (COFF)+63

TMS320F28335ZAYA

Active

Texas Instruments

C2000™ 32-BIT MCU WITH 150 MIPS, FPU, 512 KB FLASH, EMIF, 12B ADC

Deep-Dive with AI

DocumentsDatasheet Common Object File Format (COFF)+63

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMS320F28335ZAYA	TMS320F28335 Series

Core Processor	C28x	C28x
Core Size	32-Bit Single-Core	32-Bit Single-Core
Data Converters [custom]	16	16
Data Converters [custom]	12 b	12 b
Mounting Type	Surface Mount	Surface Mount
Number of I/O	88	88
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal
Package / Case	-	176-LQFP Exposed Pad, 176-LQFP, 176-BGA
Peripherals	WDT, DMA, PWM, POR	WDT, DMA, PWM, POR
Program Memory Size	512 KB	512 KB
Program Memory Type	FLASH	FLASH
RAM Size	34 K	34 K
Speed	150 MHz	150 MHz
Supplier Device Package	179-NFBGA (12x12)	176-HLQFP (24x24), 176-LQFP (24x24), 176-BGA (15x15), 179-NFBGA (12x12)

TMS320F28335 Series

C2000™ 32-bit MCU with 150 MIPS, FPU, 512 KB flash, EMIF, 12b ADC

Part	Supplier Device Package	RAM Size	Program Memory Size	Core Size	Mounting Type	Oscillator Type	Program Memory Type	Data Converters [custom]	Data Converters [custom]	Package / Case	Peripherals	Operating Temperature [Min]	Operating Temperature [Max]	Speed	Number of I/O	Core Processor
Texas Instruments TMS320F28335PTPS	176-HLQFP (24x24)	34 K	512 KB	32-Bit Single-Core	Surface Mount	Internal	FLASH	16	12 b	176-LQFP Exposed Pad	DMA, POR, PWM, WDT	-40 °C	125 °C	150 MHz	88	C28x
Texas Instruments TMS320F28335PGFA	176-LQFP (24x24)	34 K	512 KB	32-Bit Single-Core	Surface Mount	Internal	FLASH	16	12 b	176-LQFP	DMA, POR, PWM, WDT	-40 °C	85 °C	150 MHz	88	C28x
Texas Instruments TMS320F28335ZJZA	176-BGA (15x15)	34 K	512 KB	32-Bit Single-Core	Surface Mount	Internal	FLASH	16	12 b	176-BGA	DMA, POR, PWM, WDT	-40 °C	85 °C	150 MHz	88	C28x
Texas Instruments TMS320F28335ZAYA	179-NFBGA (12x12)	34 K	512 KB	32-Bit Single-Core	Surface Mount	Internal	FLASH	16	12 b		DMA, POR, PWM, WDT	-40 °C	85 °C	150 MHz	88	C28x
Texas Instruments TMS320F28335ZJZS	176-BGA (15x15)	34 K	512 KB	32-Bit Single-Core	Surface Mount	Internal	FLASH	16	12 b	176-BGA	DMA, POR, PWM, WDT	-40 °C	125 °C	150 MHz	88	C28x

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 35.99
		10	$ 29.25
		25	$ 27.57
		160	$ 25.24
		320	$ 24.64
Texas Instruments	EIAJ TRAY (5+1)	1	$ 29.72
		100	$ 25.96
		250	$ 20.02
		1000	$ 17.91

Description

General part information

TMS320F28335 Series

C2000™ real-time microcontrollersare optimized for processing, sensing, and actuation to improve closed-loop performance inreal-time control applicationssuch asindustrial motor drives;solar inverters and digital power;electrical vehicles and transportation;motor control; andsensing and signal processing. The C2000 line includes thePremium performance MCUsand theEntry performance MCUs.

The TMS320F28335, TMS320F28334, TMS320F28333, TMS320F28332, TMS320F28235, TMS320F28234, and TMS320F28232 devices are highly integrated, high-performance solutions for demanding control applications.

Throughout this document, the devices are abbreviated as F28335, F28334, F28333, F28332, F28235, F28234, and F28232, respectively. F2833x Device Comparison and F2823x Device Comparison provide a summary of features for each device.

Documents

Technical documentation and resources

TMS320F28335ZAYA

Deep-Dive with AI

TMS320F28335ZAYA

Deep-Dive with AI

Technical Specifications

TMS320F28335 Series

Pricing

Description

TMS320F28335 Series

Documents

Datasheet

Common Object File Format (COFF)

TMS320F2833x/2823x to TMS320F2837xD/2837xS/2807x Migration Overview

Programming External Nonvolatile Memory Using SDFlash for TMS320C28x Devices

Dual Motor Ctl Using FCL and Perf Analysis Using SFRA on TMS320F28379D LaunchPad (Rev. A)

Serial Flash Programming of C2000 Microcontrollers (Rev. H)

Fast Current Loop (C28x) Library

Performance Analysis of Fast Current Loop (FCL) in Servo

An Overview of Designing Analog Interface With TM320F28xx/28xxx DSCs (Rev. A)

Calculator for CAN Bit Timing Parameters

Programming TMS320x28xx and 28xxx Peripherals in C/C++ (Rev. E)

Sensorless Field Oriented Control:3-Phase Perm.Magnet Synch. Motors Using 2833x

Exploring the evolution and optimization of wireless power transfer

Migrating from TMS320x281x to TMS320x2833x or 2823x (Rev. B)

Running an Application from Internal Flash Memory on the TMS320F28xxx DSP (Rev. L)

C2000 Real-Time Control Peripheral Reference Guide (Rev. T)

Certificate of Compliance

Migrating from TMS320x2833x/2823x to TMS320x2834x

Safety Manual for C2000 MCUs in IEC60730 Safety Applications (Rev. A)

Resolver-to-digital conversion implementation (Rev. A)

TMS320280x and TMS320F2801x ADC Calibration (Rev. A)

Copying Compiler Sections from Flash to RAM on the TMS320F28xxx DSCs (Rev. A)

TMS320C28x DSP/BIOS 5.x Application Programming Interface (API) Reference Guide (Rev. L)

Certificate of Compliance E352502-20130316

TMS320C28x DSP CPU and Instruction Set (Rev. F)

Flash Programming Solutions for the TMS320F28xxx DSCs

Migrating from TMS320x281x to TMS320x280x/2801x/2804x (Rev. A)

Calculating Useful Lifetimes of Embedded Processors (Rev. B)

TMS320C28x Floating Point Unit and Instruction Set Reference Guide (Rev. A)

TMS320F2833x, TMS320F2823x Real-Time Microcontrollers datasheet (Rev. Q)

Using the eQEP Module in TMS320x280x as a Dedicated Capture

Designing the Next Generation of Industrial Drive and Control Systems (Rev. A)

Interfacing the TMS320F2833x to the AIC23B Stereo Audio Codec

Programming Examples for the TMS320x28xx eCAN (Rev. B)

Migrating from TMS320x280x to TMS320x2833x or 2823x (Rev. B)

Calculating FIT for a Mission Profile

Sensorless Field Oriented Control of 3-Phase Induction Motors Using F2833x

VDE Safety Certification Document

TMS320F2833x, TMS320F2823x Real-Time MCUs Silicon Errata (Rev. N)

Migrating Software From 8-Bit (Byte) Addressable CPU’s to C28x CPU (Rev. A)

PowerPAD™ Thermally Enhanced Package (Rev. H)

IEC60730 Safety Library for TMS320F2803x

Semiconductor and IC Package Thermal Metrics (Rev. D)

MSL Ratings and Reflow Profiles (Rev. A)

Breakthrough technologies lead the solar power industry into the future

TMS320C28x FPU Primer (Rev. A)

Using Enhanced Pulse Width Modulator (ePWM) Module for 0-100% Duty Cycle Control

TMS320x2833x, TMS320x2823x Technical Reference Manual

Using PWM Output as a Digital-to-Analog Converter on a TMS320F280x (Rev. A)

Understanding Security Features for C2000 Real-Time Control MCUs (Rev. E)

TMS320C28x Extended Instruction Sets Technical Reference Manual (Rev. C)

How fast is your 32-bit MCU?

C2000™ Safety Mechanisms (Rev. B)

Configuring Source of Multiple ePWM Trip-Zone Events

Interfacing SD/MMC Cards With TMS320F28xxx DSCs

EEPROM Emulation for Gen 2 C2000 Real-Time MCUs (Rev. A)

C2000™ Unique Device Number (Rev. B)

IEC60730 Safety Library for TMS320F2802x

Online Stack Overflow Detection on the TMS320C28x DSP

Hardware Design Guidelines for TMS320F28xx and TMS320F28xxx DSCs (Rev. D)

C2000™ MCU JTAG Connectivity Debug (Rev. C)

Custom Bootloader Options via One-Time Programmable (OTP) Memory

Enhancing the Computational Performance of the C2000™ Microcontroller Family (Rev. C)

Configurable Error Generator for Controller Area Network

C2000™ Safety Package for Automotive and Industrial Real-Time Microcontrollers (Rev. D)
