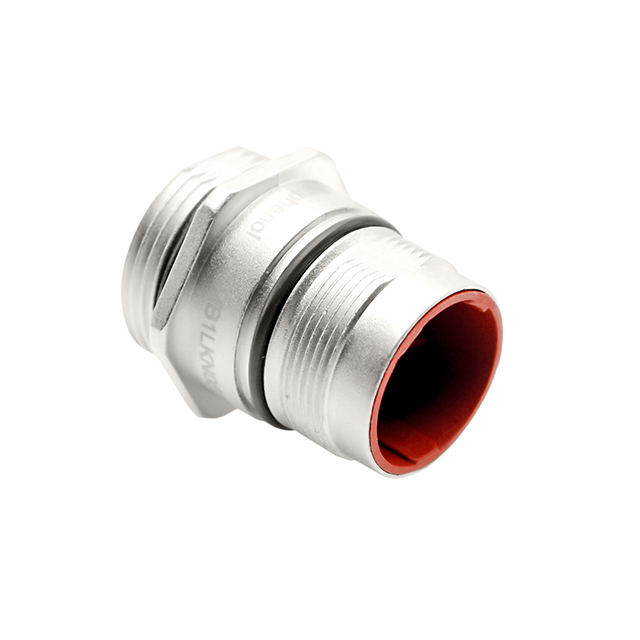

MB1LKN0800

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 8POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 8POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	MB1LKN0800

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm, 2 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	8
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-8
Shielding	Shielded
Type	For Male Pins

Part	Contact Shape	Shell Material	Note	Orientation	Material Flammability Rating	Mounting Feature	Shell Size - Insert	Connector Type	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Type	Shell Finish	Housing Color	Contact Size	Insert Material	Ingress Protection	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol Sine Systems Corp MB1LKNNG36	Circular	Zinc Die Cast	Contacts Not Included	Keyed	UL94 V-0	Bulkhead	M23-9	Receptacle Housing	PE	3	5	9	Shielded	-20 C	130 °C	Crimp	For Male Pins	Nickel	Silver	1 mm 2 mm	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp MB1LKN0800	Circular	Zinc Die Cast	Contacts Not Included	Keyed	UL94 V-0	Bulkhead	M23-8	Receptacle Housing	PE				Shielded	-20 C	130 °C	Crimp	For Male Pins	Nickel	Silver	1 mm 2 mm	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	3	8	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 12.71

General part information

8 (4 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
