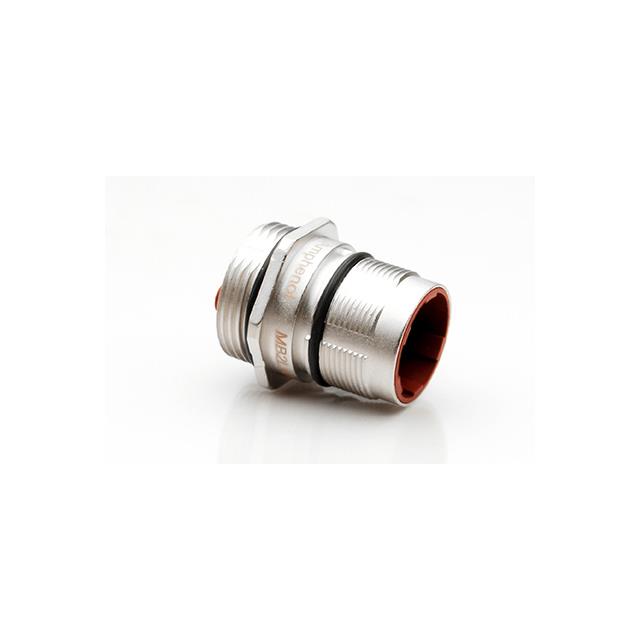

MB1LKNNG36

Active

Amphenol Sine Systems Corp

9 (3+6) POSITION JAM NUT RECEPTA

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

9 (3+6) POSITION JAM NUT RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	MB1LKNNG36

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2 mm, 1 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	5
Number of Positions [custom]	9
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Type	For Male Pins

Part	Contact Shape	Shell Material	Note	Orientation	Material Flammability Rating	Mounting Feature	Shell Size - Insert	Connector Type	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Type	Shell Finish	Housing Color	Contact Size	Insert Material	Ingress Protection	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol Sine Systems Corp MB1LKNNG36	Circular	Zinc Die Cast	Contacts Not Included	Keyed	UL94 V-0	Bulkhead	M23-9	Receptacle Housing	PE	3	5	9	Shielded	-20 C	130 °C	Crimp	For Male Pins	Nickel	Silver	1 mm 2 mm	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp MB1LKN0800	Circular	Zinc Die Cast	Contacts Not Included	Keyed	UL94 V-0	Bulkhead	M23-8	Receptacle Housing	PE				Shielded	-20 C	130 °C	Crimp	For Male Pins	Nickel	Silver	1 mm 2 mm	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	3	8	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 11.50

General part information

9 (5 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
