Specification	TLV71315PDQNR

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	75 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Fixed
Package / Case	4-XDFN Exposed Pad
Package Length	1 mm
Package Name	4-X2SON
Package Width	1 mm
Protection Features	Reverse Polarity, Over Current, Short Circuit, Under Voltage Lockout (UVLO), Over Temperature
PSRR (Maximum)	70 dB
PSRR (Minimum)	55 dB
Voltage - Input (Max)	5.5 V
Voltage - Output (Min/Fixed)	1.5 V
Voltage Dropout (Max)	1.02 V

TLV713P Series

Part	Package Length	Package Name	Package Width	Mounting Type	Number of Regulators	Output Configuration	Protection Features	Voltage Dropout (Max)	Control Features	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Voltage - Input (Max)	Current - Output	Output Type	PSRR (Maximum)	PSRR (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Supplied Contents	Board Type	Utilized IC / Part	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Voltage - Output	Contents	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Regulator Type
Texas Instruments TLV71315PDQNR	1 mm	4-X2SON	1 mm	Surface Mount	1	Positive	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	1.02 V	Enable	1.5 V	75 µA	5.5 V	150 mA	Fixed	70 dB	55 dB	125 °C	-40 °C	4-XDFN Exposed Pad
Texas Instruments TLV713285PDBVT		SOT-23-5		Surface Mount	1	Positive	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	0.57 V	Enable	2.85 V	75 µA	5.5 V	150 mA	Fixed	70 dB	55 dB	125 °C	-40 °C
Texas Instruments TLV713285PDQNR	1 mm	4-X2SON	1 mm	Surface Mount	1	Positive	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	0.57 V	Enable	2.85 V	75 µA	5.5 V	150 mA	Fixed	70 dB	55 dB	125 °C	-40 °C	4-XDFN Exposed Pad

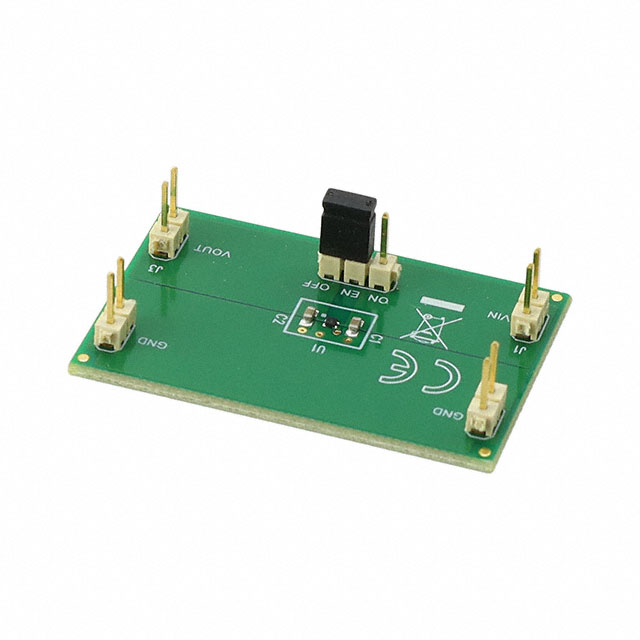

Texas Instruments TLV71733PEVM-072													150 mA							Board(s)	Fully Populated	TLV71733P	1	Single	1	3.3 V	Board	5.5 V	2.9 V	Positive Fixed
Texas Instruments TLV71310PDQNT	1 mm	4-X2SON	1 mm	Surface Mount	1	Positive	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	1.02 V	Enable	1 V	75 µA	5.5 V	150 mA	Fixed	70 dB	55 dB	125 °C	-40 °C	4-XDFN Exposed Pad
