M80-5000000M1-04-331-00-000
ActiveHarwin Inc.

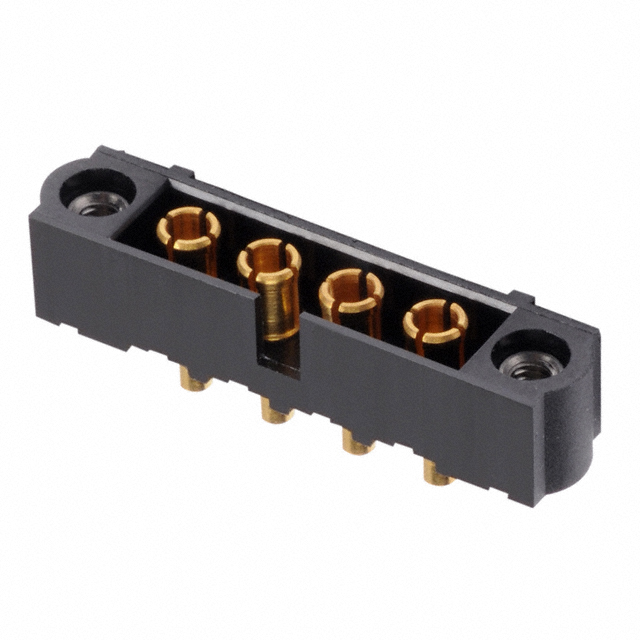

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 4 MM, 1 ROWS, 4 CONTACTS, THROUGH HOLE
Deep-Dive with AI
Search across all available documentation for this part.
M80-5000000M1-04-331-00-000
ActiveHarwin Inc.
PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 4 MM, 1 ROWS, 4 CONTACTS, THROUGH HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5000000M1-04-331-00-000 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin, Power |
| Current Rating (Amps) | 20 A |
| Features | Keying Slot, Mating Flange |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.3 mm, 9.75 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.157 " |
| Pitch - Mating | 4 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-5000000M1 Series
Connector Header Through Hole 4 position 0.157" (4.00mm)
