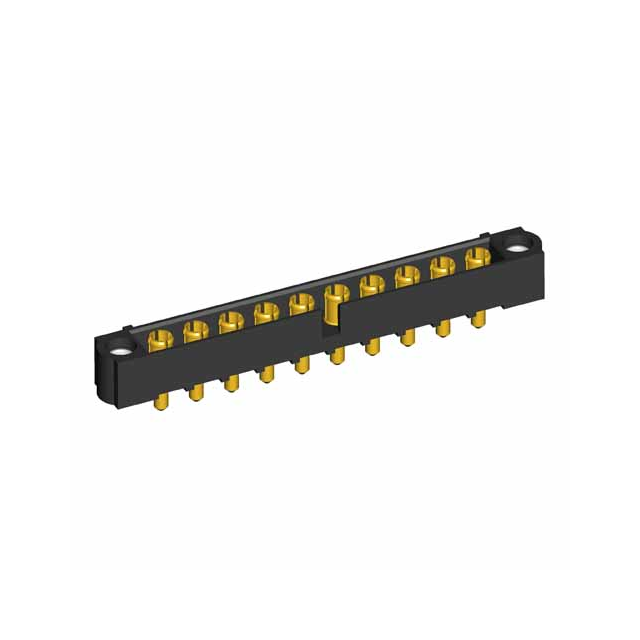

M80-5000000M1-10-331-00-000

Active

Harwin Inc.

CONN HEADER VERT 10POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80-0110001 +2

M80-5000000M1-10-331-00-000

Active

Harwin Inc.

CONN HEADER VERT 10POS 4MM

Deep-Dive with AI

DocumentsDatasheet M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5000000M1-10-331-00-000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin, Power
Current Rating (Amps)	20 A
Features	Keying Slot, Mating Flange
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.3 mm, 9.75 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.157 "
Pitch - Mating	4 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	800 V

M80-5000000M1 Series

Part	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Contact Finish - Mating	Voltage Rating	Features	Number of Rows	Material Flammability Rating	Contact Type	Shrouding	Connector Type	Termination	Number of Positions Loaded	Mated Stacking Heights	Insulation Material	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Style	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Shape	Insulation Height	Insulation Height
Harwin Inc. M80-5000000M1-04-331-00-000	Copper Alloy	0.157 "	4 mm	10 çin	0.25 çm	4	Through Hole	Gold	800 V	Keying Slot Mating Flange	1	UL94 V-0	Male Pin Power	Shrouded - 4 Wall	Header	Solder	All	7.3 mm 9.75 mm	Polyphenylene Sulfide (PPS) Glass Filled	Black	-55 °C	125 °C	Board to Cable/Wire	20 A	3.5 mm	0.138 in	Circular	5.6 mm	0.22 in
Harwin Inc. M80-5000000M1-06-331-00-000	Copper Alloy	0.157 "	4 mm	10 çin	0.25 çm	6	Through Hole	Gold	800 V	Keying Slot Mating Flange	1	UL94 V-0	Male Pin Power	Shrouded - 4 Wall	Header	Solder	All	7.3 mm 9.75 mm	Polyphenylene Sulfide (PPS) Glass Filled	Black	-55 °C	125 °C	Board to Cable/Wire	20 A	3.5 mm	0.138 in	Circular	5.6 mm	0.22 in
Harwin Inc. M80-5000000M1-05-331-00-000	Copper Alloy	0.157 "	4 mm	10 çin	0.25 çm		Through Hole	Gold	800 V	Keying Slot Mating Flange	1	UL94 V-0	Male Pin Power	Shrouded - 4 Wall	Header	Solder	All	7.3 mm 9.75 mm	Polyphenylene Sulfide (PPS) Glass Filled	Black	-55 °C	125 °C	Board to Cable/Wire	20 A	3.5 mm	0.138 in	Circular	5.6 mm	0.22 in
Harwin Inc. M80-5000000M1-10-331-00-000	Copper Alloy	0.157 "	4 mm	10 çin	0.25 çm	10	Through Hole	Gold	800 V	Keying Slot Mating Flange	1	UL94 V-0	Male Pin Power	Shrouded - 4 Wall	Header	Solder	All	7.3 mm 9.75 mm	Polyphenylene Sulfide (PPS) Glass Filled	Black	-55 °C	125 °C	Board to Cable/Wire	20 A	3.5 mm	0.138 in	Circular	5.6 mm	0.22 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	120	$ 55.29

Description

General part information

M80-5000000M1 Series

Connector Header Through Hole 10 position 0.157" (4.00mm)

Documents

Technical documentation and resources

Datasheet

M80-0110001

M80-263F102-00-00

M80, M83 Series Spec Sheet

Datasheet
