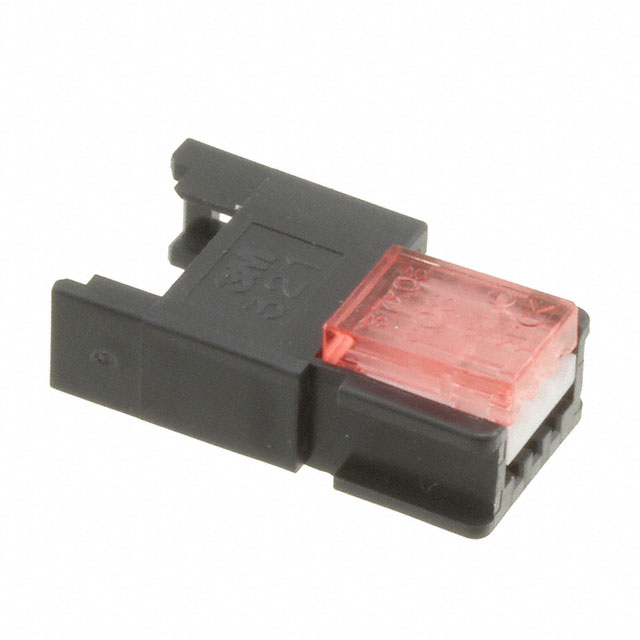

37303-3101-000 FL 100

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 1 ROW, 3 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

37303-3101-000 FL 100

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 1 ROW, 3 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	37303-3101-000 FL 100

Cable Termination	IDC
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Female Socket
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	24 AWG
Wire Type	Discrete

37303 Series

Part	Cable Termination	Contact Finish	Connector Type	Contact Type	Number of Rows	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Color	Features	Mounting Type
3M (TC) 37303-2206-0P0 FL 100	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	22 AWG	8 çin	0.203 çm	Discrete	Black	Closed End
3M (TC) 37303-3101-000 FL 100	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	24 AWG	26 AWG	8 çin	0.203 çm	Discrete	Black	Closed End	Free Hanging (In-Line)
3M (TC) 37303-2165-000 FL 100	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	22 AWG	8 çin	0.203 çm	Discrete	Black	Closed End	Free Hanging (In-Line)
3M (TC) 37303-2165-0P0 FL 100	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	22 AWG	8 çin	0.203 çm	Discrete	Black	Closed End
3M (TC) 37303-A206-0PE MB	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	24 AWG	8 çin	0.203 çm	Discrete	Black	Closed End
3M (TC) 37303-2124-0P0 FL 100	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	22 AWG	8 çin	0.203 çm	Discrete	Black	Closed End
3M (TC) 37303-A124-00E MB	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	24 AWG	8 çin	0.203 çm	Discrete	Black	Closed End	Free Hanging (In-Line)
3M (TC) 37303-3163-000 FL 500	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	24 AWG	26 AWG	8 çin	0.203 çm	Discrete	Black	Closed End	Free Hanging (In-Line)
3M (TC) 37303-A165-0PE MB	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	24 AWG	8 çin	0.203 çm	Discrete	Black	Closed End
3M (TC) 37303-A206-00E MB	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	24 AWG	8 çin	0.203 çm	Discrete	Black	Closed End	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.44
		10	$ 3.13
		25	$ 2.96
		50	$ 2.89
		100	$ 2.75
		300	$ 2.41
		500	$ 2.34
		1000	$ 2.00
		2500	$ 1.86

Description

General part information

37303 Series

3 Position Rectangular Receptacle Connector IDC Gold 24-26 AWG

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
