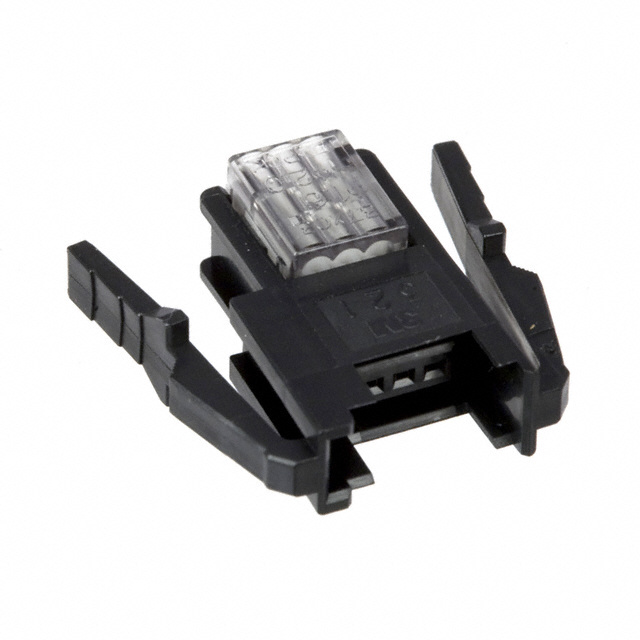

37303-A206-0PE MB

Active

3M (TC)

CONN RCPT 3POS IDC 20-24AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

37303-A206-0PE MB

Active

3M (TC)

CONN RCPT 3POS IDC 20-24AWG GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	37303-A206-0PE MB

Cable Termination	IDC
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Female Socket
Features	Closed End
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	20 AWG
Wire Type	Discrete

37303 Series

Part	Cable Termination	Contact Finish	Connector Type	Contact Type	Number of Rows	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Color	Features	Mounting Type
3M (TC) 37303-2206-0P0 FL 100	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	22 AWG	8 çin	0.203 çm	Discrete	Black	Closed End
3M (TC) 37303-3101-000 FL 100	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	24 AWG	26 AWG	8 çin	0.203 çm	Discrete	Black	Closed End	Free Hanging (In-Line)
3M (TC) 37303-2165-000 FL 100	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	22 AWG	8 çin	0.203 çm	Discrete	Black	Closed End	Free Hanging (In-Line)
3M (TC) 37303-2165-0P0 FL 100	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	22 AWG	8 çin	0.203 çm	Discrete	Black	Closed End
3M (TC) 37303-A206-0PE MB	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	24 AWG	8 çin	0.203 çm	Discrete	Black	Closed End
3M (TC) 37303-2124-0P0 FL 100	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	22 AWG	8 çin	0.203 çm	Discrete	Black	Closed End
3M (TC) 37303-A124-00E MB	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	24 AWG	8 çin	0.203 çm	Discrete	Black	Closed End	Free Hanging (In-Line)
3M (TC) 37303-3163-000 FL 500	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	24 AWG	26 AWG	8 çin	0.203 çm	Discrete	Black	Closed End	Free Hanging (In-Line)
3M (TC) 37303-A165-0PE MB	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	24 AWG	8 çin	0.203 çm	Discrete	Black	Closed End
3M (TC) 37303-A206-00E MB	IDC	Gold	Receptacle	Female Socket	1	0.079 in	2 mm	20 AWG	24 AWG	8 çin	0.203 çm	Discrete	Black	Closed End	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

37303 Series

3 Position Rectangular Receptacle Connector IDC Gold 20-24 AWG
