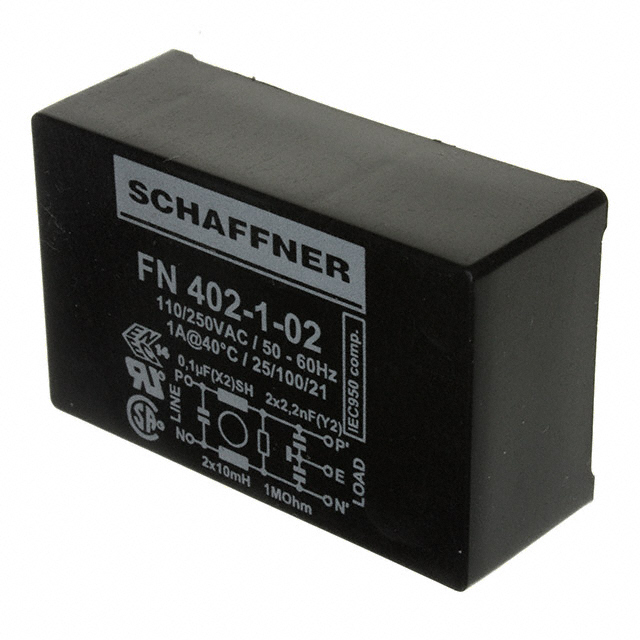

FN402-1-02
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 250VAC 1A TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN402-1-02
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 250VAC 1A TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN402-1-02 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Single Stage |
| Current | 1 A |
| Filter Type | Single Phase |
| Frequency - Operating | 400 Hz |
| Inductance | 10 mH |
| Mounting Type | Through Hole |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | PC Pins |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.48 | |
| 10 | $ 9.37 | |||
| 25 | $ 8.64 | |||
| 40 | $ 8.29 | |||
| 80 | $ 7.79 | |||
| 230 | $ 7.10 | |||
| 440 | $ 6.85 | |||
Description
General part information
Schaffner FN402 Series
Single Phase EMC/EMI Line Filter 1 A 250V DC ~ 400Hz Single Stage PC Pins
