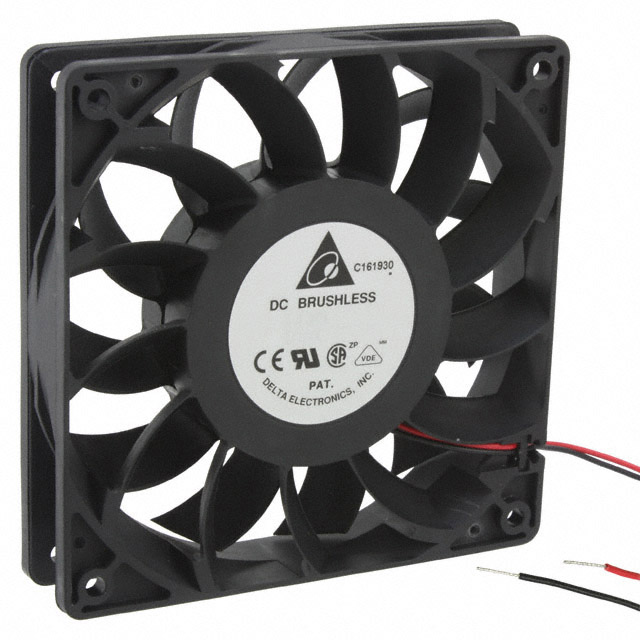

FFB1248VHE
ObsoleteDelta Electronics
FAN AXIAL 120X38MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FFB1248VHE
ObsoleteDelta Electronics
FAN AXIAL 120X38MM 48VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFB1248VHE |
|---|---|
| Air Flow | 151.8 CFM |
| Air Flow | 4.25 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.28 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 53 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 13.44 W |
| RPM | 3200 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 110.8 Pa |
| Static Pressure | 0.445 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 56 VDC |
| Voltage Range [Min] | 28 V |
| Weight | 370.13 g |
| Weight | 0.816 lb |
| Width [y] | 38 mm |
FFB1248 Series
| Part | Material - Blade | Material - Frame | Weight | Weight | Power (Watts) | Termination | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Noise | Voltage Range [Min] | Voltage Range [Max] | RPM | Air Flow | Air Flow | Fan Type | Static Pressure | Static Pressure | Features | Bearing Type | Lifetime @ Temp. | Approval Agency | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Width [y] | Voltage - Rated [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | Plastic | Plastic | 370.13 g | 0.816 lb | 13.44 W | 3 Wire Leads | -10 °C | -10 °C | 60 °C | 60 °C | 53 dB | 28 V | 56 VDC | 3200 RPM | 151.8 CFM | 4.25 m³/min | Tubeaxial | 110.8 Pa | 0.445 in H2O | Locked Rotor Protection Speed Sensor (Tach) | Ball | 70000 Hrs | CE CSA UL VDE | 0.28 A | 120 mm | 120 mm | 38 mm | 48 VDC |
Delta Electronics | Plastic | Plastic | 370.13 g | 0.816 lb | 18.24 W | 2 Wire Leads | -10 °C | -10 °C | 60 °C | 60 °C | 56.5 dB | 28 V | 56 VDC | 3600 RPM | 170.9 CFM | 4.79 m³/min | Tubeaxial | 140.2 Pa | 0.563 in H2O | Ball | 70000 Hrs | CE CSA UL VDE | 0.38 A | 120 mm | 120 mm | 38 mm | 48 VDC | |
Delta Electronics | Plastic | Plastic | 370.13 g | 0.816 lb | 13.44 W | 2 Wire Leads | -10 °C | -10 °C | 60 °C | 60 °C | 53 dB | 28 V | 56 VDC | 3200 RPM | 151.8 CFM | 4.25 m³/min | Tubeaxial | 110.8 Pa | 0.445 in H2O | Ball | 70000 Hrs | CE CSA UL VDE | 0.28 A | 120 mm | 120 mm | 38 mm | 48 VDC | |
Delta Electronics | Plastic | Aluminum | 499 g | 1.1 lbs | 79.2 W | 2 Wire Leads | -10 °C | -10 °C | 70 °C | 70 °C | 73.5 dB(A) | 28 V | 54 VDC | 6300 RPM | 264.6 CFM | 7.41 m³/min | Tubeaxial | 424.7 Pa | 1.705 in H2O | Ball | 70000 Hrs | CE CSA UL VDE | 1.65 A | 120 mm | 120 mm | 38 mm | 48 VDC | |
Delta Electronics | Plastic | Plastic | 370.13 g | 0.816 lb | 13.44 W | 3 Wire Leads | -10 °C | -10 °C | 60 °C | 60 °C | 53 dB | 28 V | 56 VDC | 3200 RPM | 151.8 CFM | 4.25 m³/min | Tubeaxial | 110.8 Pa | 0.445 in H2O | Locked Rotor Sensor | Ball | 70000 Hrs | CE CSA UL VDE | 0.28 A | 120 mm | 120 mm | 38 mm | 48 VDC |
Delta Electronics | Plastic | Plastic | 370.13 g | 0.816 lb | 24 W | 3 Wire Leads | -10 °C | -10 °C | 50 °C | 50 °C | 59 dB(A) | 28 V | 53 VDC | 4000 RPM | 190 CFM | 5.32 m³/min | Tubeaxial | 174.4 Pa | 0.7 in H2O | Locked Rotor Protection Speed Sensor (Tach) | Ball | 70000 Hrs | CE CSA UL VDE | 0.5 A | 120 mm | 120 mm | 38 mm | 48 VDC |
Delta Electronics | Plastic | Plastic | 370.13 g | 0.816 lb | 24 W | 2 Wire Leads | -10 °C | -10 °C | 50 °C | 50 °C | 59 dB(A) | 28 V | 53 VDC | 4000 RPM | 190 CFM | 5.32 m³/min | Tubeaxial | 174.4 Pa | 0.7 in H2O | Ball | 70000 Hrs | CE CSA UL VDE | 0.5 A | 120 mm | 120 mm | 38 mm | 48 VDC | |
Delta Electronics | Plastic | Plastic | 370.13 g | 0.816 lb | 18.24 W | 3 Wire Leads | -10 °C | -10 °C | 60 °C | 60 °C | 56.5 dB | 28 V | 56 VDC | 3600 RPM | 170.9 CFM | 4.79 m³/min | Tubeaxial | 140.2 Pa | 0.563 in H2O | Locked Rotor Sensor | Ball | 70000 Hrs | CE CSA UL VDE | 0.38 A | 120 mm | 120 mm | 38 mm | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FFB1248 Series
Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 151.8 CFM (4.25m³/min) 2 Wire Leads
