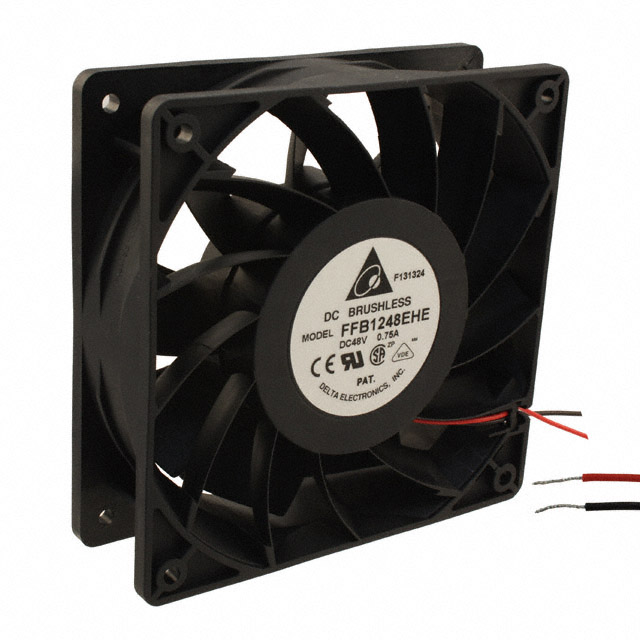

FFB1248EHE

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Fans, Electric - Component UL Cert +2

FFB1248EHE

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB1248EHE

Air Flow	5.32 m³/min
Air Flow	190 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.5 A
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59 dB(A)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	24 W
RPM	4000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.7 in H2O
Static Pressure	174.4 Pa
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	53 VDC
Voltage Range [Min]	28 V
Weight	370.13 g
Weight	0.816 lb
Width [y]	38 mm

FFB1248 Series

Part	Material - Blade	Material - Frame	Weight	Weight	Power (Watts)	Termination	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Noise	Voltage Range [Min]	Voltage Range [Max]	RPM	Air Flow	Air Flow	Fan Type	Static Pressure	Static Pressure	Features	Bearing Type	Lifetime @ Temp.	Approval Agency	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Voltage - Rated [custom]
Delta Electronics FFB1248VHE-F00	Plastic	Plastic	370.13 g	0.816 lb	13.44 W	3 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	53 dB	28 V	56 VDC	3200 RPM	151.8 CFM	4.25 m³/min	Tubeaxial	110.8 Pa	0.445 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Ball	70000 Hrs	CE CSA UL VDE	0.28 A	120 mm	120 mm	38 mm	48 VDC
Delta Electronics FFB1248SHE	Plastic	Plastic	370.13 g	0.816 lb	18.24 W	2 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	56.5 dB	28 V	56 VDC	3600 RPM	170.9 CFM	4.79 m³/min	Tubeaxial	140.2 Pa	0.563 in H2O		Ball	70000 Hrs	CE CSA UL VDE	0.38 A	120 mm	120 mm	38 mm	48 VDC
Delta Electronics FFB1248VHE	Plastic	Plastic	370.13 g	0.816 lb	13.44 W	2 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	53 dB	28 V	56 VDC	3200 RPM	151.8 CFM	4.25 m³/min	Tubeaxial	110.8 Pa	0.445 in H2O		Ball	70000 Hrs	CE CSA UL VDE	0.28 A	120 mm	120 mm	38 mm	48 VDC
Delta Electronics FFB1248XHE-M	Plastic	Aluminum	499 g	1.1 lbs	79.2 W	2 Wire Leads	-10 °C	-10 °C	70 °C	70 °C	73.5 dB(A)	28 V	54 VDC	6300 RPM	264.6 CFM	7.41 m³/min	Tubeaxial	424.7 Pa	1.705 in H2O		Ball	70000 Hrs	CE CSA UL VDE	1.65 A	120 mm	120 mm	38 mm	48 VDC
Delta Electronics FFB1248VHE-R00	Plastic	Plastic	370.13 g	0.816 lb	13.44 W	3 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	53 dB	28 V	56 VDC	3200 RPM	151.8 CFM	4.25 m³/min	Tubeaxial	110.8 Pa	0.445 in H2O	Locked Rotor Sensor	Ball	70000 Hrs	CE CSA UL VDE	0.28 A	120 mm	120 mm	38 mm	48 VDC
Delta Electronics FFB1248EHE-F00	Plastic	Plastic	370.13 g	0.816 lb	24 W	3 Wire Leads	-10 °C	-10 °C	50 °C	50 °C	59 dB(A)	28 V	53 VDC	4000 RPM	190 CFM	5.32 m³/min	Tubeaxial	174.4 Pa	0.7 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Ball	70000 Hrs	CE CSA UL VDE	0.5 A	120 mm	120 mm	38 mm	48 VDC
Delta Electronics FFB1248EHE	Plastic	Plastic	370.13 g	0.816 lb	24 W	2 Wire Leads	-10 °C	-10 °C	50 °C	50 °C	59 dB(A)	28 V	53 VDC	4000 RPM	190 CFM	5.32 m³/min	Tubeaxial	174.4 Pa	0.7 in H2O		Ball	70000 Hrs	CE CSA UL VDE	0.5 A	120 mm	120 mm	38 mm	48 VDC
Delta Electronics FFB1248SHE-R00	Plastic	Plastic	370.13 g	0.816 lb	18.24 W	3 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	56.5 dB	28 V	56 VDC	3600 RPM	170.9 CFM	4.79 m³/min	Tubeaxial	140.2 Pa	0.563 in H2O	Locked Rotor Sensor	Ball	70000 Hrs	CE CSA UL VDE	0.38 A	120 mm	120 mm	38 mm	48 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FFB1248 Series

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 190.0 CFM (5.32m³/min) 2 Wire Leads
