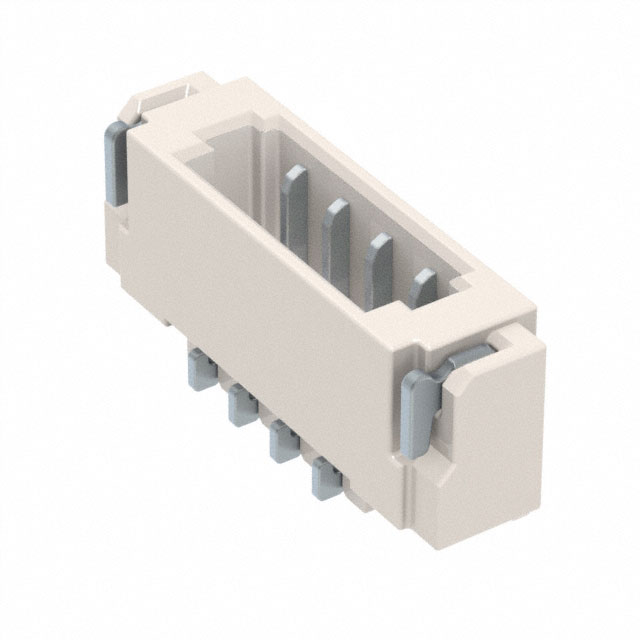

10144041-04011LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 4POS 0.8MM
Deep-Dive with AI
Search across all available documentation for this part.
10144041-04011LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 4POS 0.8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10144041-04011LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Glow Wire Compliant, Solder Retention |
| Insulation Color | Cream |
| Insulation Height | 0.069 in |
| Insulation Height | 1.75 mm |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.031 in |
| Pitch - Mating | 0.8 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.80 | |
| 10 | $ 0.61 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 0.80 | ||
| 10 | $ 0.61 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 3500 | $ 0.32 | ||
| 7000 | $ 0.30 | |||
| 10500 | $ 0.29 | |||
| 17500 | $ 0.28 | |||
Description
General part information
10144041 Series
Connector Header Surface Mount, Right Angle 4 position 0.031" (0.80mm)
