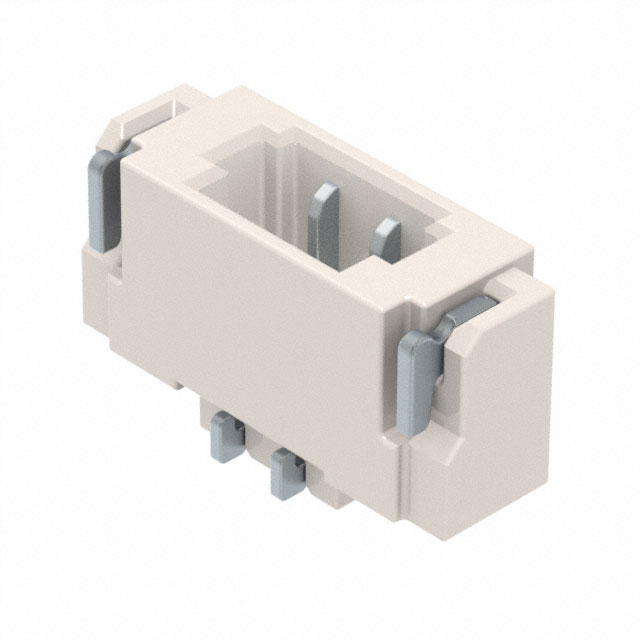

Specification	10144041-02011LF

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating	1 A
Fastening Type	Push-Pull
Features	Solder Retention, Glow Wire Compliant
Insulation Color	Cream
Insulation Height	0.069 in
Insulation Material	Halogen Free, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.031 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	30 V

10144041 Series

Part	Contact Material	Fastening Type	Current Rating	Number of Positions	Number of Rows	Material Flammability Rating	Connector Type	Insulation Height	Insulation Color	Shrouding	Number of Positions Loaded	Voltage Rating	Style	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Post	Mounting Type	Contact Type	Insulation Material	Contact Finish - Mating	Contact Shape	Termination	Features	Pitch - Mating
Amphenol ICC (FCI) 10144041-02011LF	Copper Alloy	Push-Pull	1 A	2	1	UL94 V-0	Header	0.069 in	Cream	Shrouded - 4 Wall	All	30 V	Board Cable/Wire	85 °C	-25 °C	Tin	Right Angle Surface Mount	Male Pin	Halogen Free Liquid Crystal Polymer (LCP)	Tin	Rectangular	Solder	Glow Wire Compliant Solder Retention	0.031 in
Amphenol ICC (FCI) 10144041-11011LF	Copper Alloy	Push-Pull	1 A	11	1	UL94 V-0	Header	0.069 in	Cream	Shrouded - 4 Wall	All	30 V	Board Cable/Wire	85 °C	-25 °C	Tin	Right Angle Surface Mount	Male Pin	Halogen Free Liquid Crystal Polymer (LCP)	Tin	Rectangular	Solder	Glow Wire Compliant Solder Retention	0.031 in
Amphenol ICC (FCI) 10144041-04011LF	Copper Alloy	Push-Pull	1 A	4	1	UL94 V-0	Header	0.069 in	Cream	Shrouded - 4 Wall	All	30 V	Board Cable/Wire	85 °C	-25 °C	Tin	Right Angle Surface Mount	Male Pin	Halogen Free Liquid Crystal Polymer (LCP)	Tin	Rectangular	Solder	Glow Wire Compliant Solder Retention	0.031 in
Amphenol ICC (FCI) 10144041-03011LF	Copper Alloy	Push-Pull	1 A	3	1	UL94 V-0	Header	0.069 in	Cream	Shrouded - 4 Wall	All	30 V	Board Cable/Wire	85 °C	-25 °C	Tin	Right Angle Surface Mount	Male Pin	Halogen Free Liquid Crystal Polymer (LCP)	Tin	Rectangular	Solder	Glow Wire Compliant Solder Retention	0.031 in
Amphenol ICC (FCI) 10144041-10011LF	Copper Alloy	Push-Pull	1 A	10	1	UL94 V-0	Header	0.069 in	Cream	Shrouded - 4 Wall	All	30 V	Board Cable/Wire	85 °C	-25 °C	Tin	Right Angle Surface Mount	Male Pin	Halogen Free Liquid Crystal Polymer (LCP)	Tin	Rectangular	Solder	Glow Wire Compliant Solder Retention	0.031 in
Amphenol ICC (FCI) 10144041-05011LF	Copper Alloy	Push-Pull	1 A	5	1	UL94 V-0	Header	0.069 in	Cream	Shrouded - 4 Wall	All	30 V	Board Cable/Wire	85 °C	-25 °C	Tin	Right Angle Surface Mount	Male Pin	Halogen Free Liquid Crystal Polymer (LCP)	Tin	Rectangular	Solder	Glow Wire Compliant Solder Retention	0.031 in
Amphenol ICC (FCI) 10144041-07011LF	Copper Alloy	Push-Pull	1 A	7	1	UL94 V-0	Header	0.069 in	Cream	Shrouded - 4 Wall	All	30 V	Board Cable/Wire	85 °C	-25 °C	Tin	Right Angle Surface Mount	Male Pin	Halogen Free Liquid Crystal Polymer (LCP)	Tin	Rectangular	Solder	Glow Wire Compliant Solder Retention	0.031 in
Amphenol ICC (FCI) 10144041-06011LF	Copper Alloy	Push-Pull	1 A	6	1	UL94 V-0	Header	0.069 in	Cream	Shrouded - 4 Wall	All	30 V	Board Cable/Wire	85 °C	-25 °C	Tin	Right Angle Surface Mount	Male Pin	Halogen Free Liquid Crystal Polymer (LCP)	Tin	Rectangular	Solder	Glow Wire Compliant Solder Retention	0.031 in
Amphenol ICC (FCI) 10144041-08011LF	Copper Alloy	Push-Pull	1 A	8	1	UL94 V-0	Header	0.069 in	Cream	Shrouded - 4 Wall	All	30 V	Board Cable/Wire	85 °C	-25 °C	Tin	Right Angle Surface Mount	Male Pin	Halogen Free Liquid Crystal Polymer (LCP)	Tin	Rectangular	Solder	Glow Wire Compliant Solder Retention	0.031 in
