HDAM-11-12.0-S-13-2

Active

Samtec Inc.

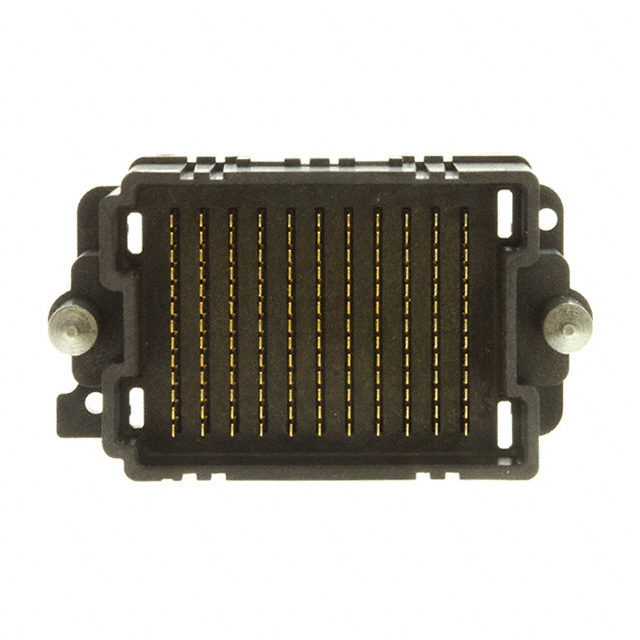

CONN HD ARRAY PLUG 143P SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY PLUG 143P SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Features	Mated Stacking Heights	Height Above Board	Height Above Board	Connector Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]
Samtec Inc. HDAM-11-12.0-S-13-2	13	Surface Mount	Gold	0.76 Ám	30 Áin	1.2 mm	0.047 in	Board Guide	20 mm 30 mm	17.35 mm	0.683 "	High Density Array Male	143
Samtec Inc. HDAM-11-17.0-S-13-2	13	Surface Mount	Gold	0.76 Ám	30 Áin	1.2 mm	0.047 in	Board Guide				High Density Array Male	143	22.35 mm	0.88 in	25 mm 35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	24	$ 37.22

General part information

143 Position Connector High Density Array, Male Surface Mount Gold
