HDAM-11 Series

Catalog

CONN HD ARRAY PLUG 143P SMD GOLD

Part	Number of Rows	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Features	Mated Stacking Heights	Height Above Board	Height Above Board	Connector Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]
Samtec Inc. HDAM-11-12.0-S-13-2	13	Surface Mount	Gold	0.76 Ám	30 Áin	1.2 mm	0.047 in	Board Guide	20 mm 30 mm	17.35 mm	0.683 "	High Density Array Male	143

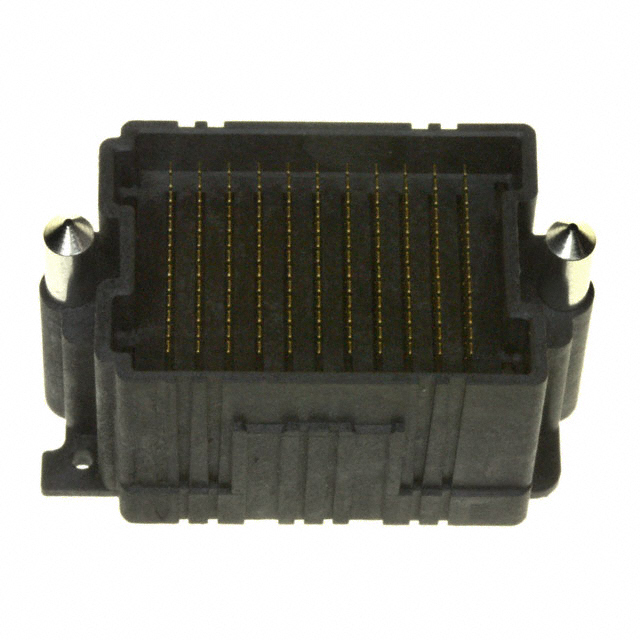

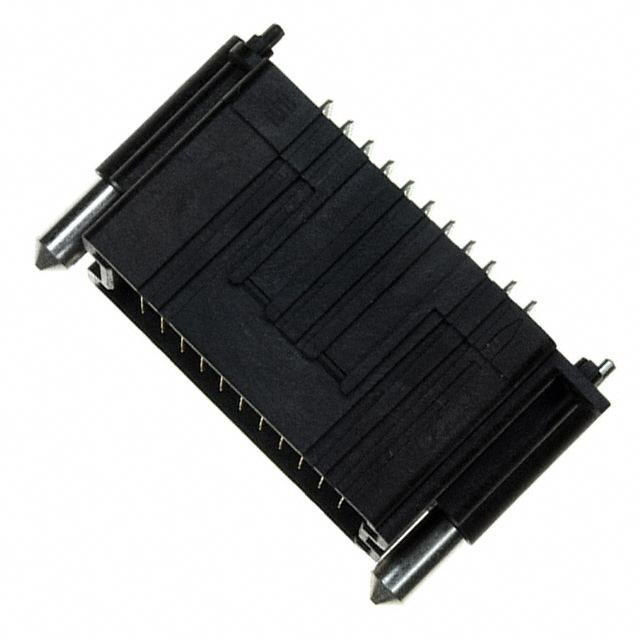

Samtec Inc. HDAM-11-17.0-S-13-2	13	Surface Mount	Gold	0.76 Ám	30 Áin	1.2 mm	0.047 in	Board Guide				High Density Array Male	143	22.35 mm	0.88 in	25 mm 35 mm
