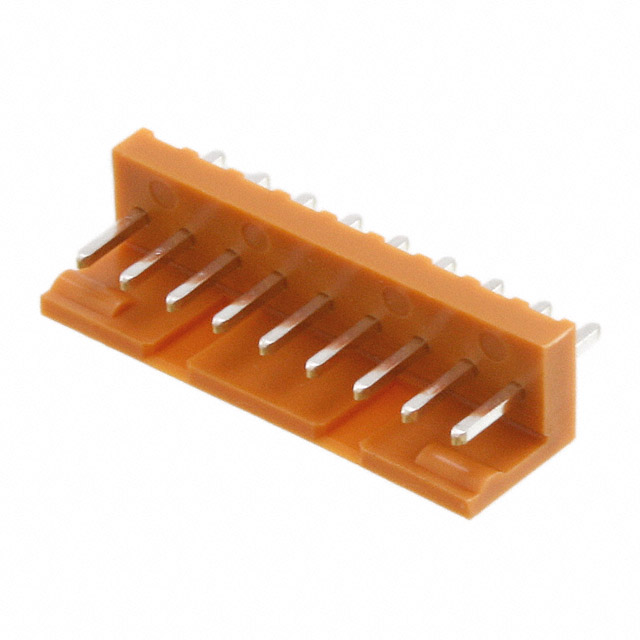

IL-G-9P-S3T2-SA

Active

HEADERS & WIRE HOUSINGS RCPT 2.5MM 9P VERT

Active

HEADERS & WIRE HOUSINGS RCPT 2.5MM 9P VERT

Description

General part information

Connector Header Through Hole 9 position 0.098" (2.50mm)

Parameters and characteristics for this part

Specification	IL-G-9P-S3T2-SA

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.157 in
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	3 A
Fastening Type	Friction Lock
Insulation Color	Brown
Insulation Height	0.28 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Height	10 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Overall Contact Length	0.378 in
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Cable/Wire, Board
Termination	Solder

Part	Note	Contact Termination	Contact Type	Color	Pitch	Insulation Material	Number of Rows	Number of Positions	Mounting Type	Fastening Type	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Length - Mating	Contact Material	Number of Positions Loaded	Material Flammability Rating	Insulation Height	Shrouding	Contact Finish - Mating	Contact Finish - Post	Contact Shape	Termination	Current Rating (Per Contact)	Insulation Color	Contact Length - Post	Overall Contact Length	Style	Pitch - Mating	Mated Stacking Height
JAE Electronics IL-G-12S-S3C2-SA	Contacts Not Included	Crimp	Female Socket	Brown	0.098 in	Nylon 6/6 Polyamide (PA66)	1	12	Free Hanging (In-Line)	Friction Lock	Receptacle	-40 °C	85 °C
JAE Electronics IL-G-9P-S3T2-SA			Male Pin			Nylon 6/6 Polyamide (PA66)	1	9	Through Hole	Friction Lock	Header	-40 °C	85 °C	0.157 in	Brass	All	UL94 V-0	0.28 in	Shrouded - 1 Wall	Tin	Tin	Square	Solder	3 A	Brown	0.138 in	0.378 in	Board Cable/Wire	0.098 in	10 mm
JAE Electronics IL-G-8S-S3C2-SA	Contacts Not Included	Crimp	Female Socket	Brown	0.098 in	Nylon 6/6 Polyamide (PA66)	1	8	Free Hanging (In-Line)	Friction Lock	Receptacle	-40 °C	85 °C
JAE Electronics IL-G-5S-S3C2-SA	Contacts Not Included	Crimp	Female Socket	Brown	0.098 in	Nylon 6/6 Polyamide (PA66)	1	5	Free Hanging (In-Line)	Friction Lock	Receptacle	-40 °C	85 °C
