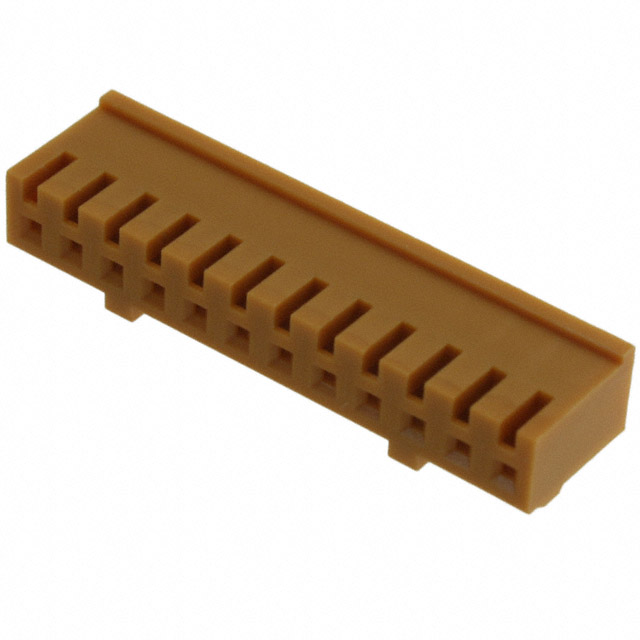

IL-G-12S-S3C2-SA
ActiveJAE Electronics
CONN RCPT HSG 12POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
IL-G-12S-S3C2-SA
ActiveJAE Electronics
CONN RCPT HSG 12POS 2.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-G-12S-S3C2-SA |
|---|---|
| Color | Brown |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Friction Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.41 | |
| 10 | $ 0.35 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.19 | |||
| 2500 | $ 0.18 | |||
Description
General part information
IL-G-12S Series
12 Rectangular Connectors - Housings Receptacle Brown 0.098" (2.50mm)
