HDTM Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Connector Style	Termination	Contact Finish Thickness	Connector Type	Connector Usage	Number of Positions	Number of Columns	Contact Finish	Number of Positions Loaded	Number of Rows	Pitch	Voltage Rating	Color

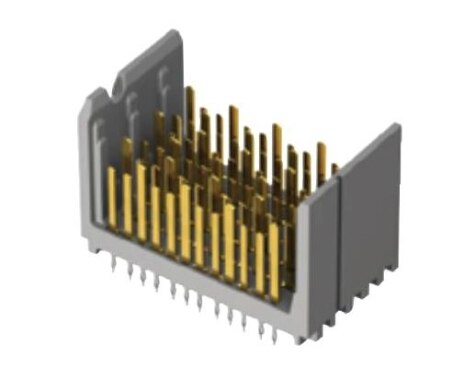

Samtec Inc. HDTM-3-06-1-S-VT-0-1	-40 °C	105 °C	Through Hole	XCede®	Press-Fit	30 µin	Header Male Blades	Backplane	36	6	Gold	All
Samtec Inc. HDTM-3-08-1-S-VT-0-2			Through Hole	XCede®	Press-Fit	30 µin	Header Male Blades	Backplane	36	8	Gold	All	6	0.071 in
Samtec Inc. HDTM-6-08-1-S-VT-0-2			Through Hole	XCede®	Press-Fit	30 µin	Header Male Blades	Backplane	96	8	Gold	All	12	0.071 in
Samtec Inc. HDTM-3-08-2-S-VT-0-4	-40 °C	105 °C	Through Hole	XCede®	Press-Fit	30 µin	Header Male Blades	Backplane	36	8	Gold	All	6	0.071 in	48 V
Samtec Inc. HDTM-3-06-2-S-VT-0-3			Through Hole	XCede®	Press-Fit	30 µin	Header Male Blades	Backplane	36	6	Gold	All	6	0.071 in
Samtec Inc. HDTM-4-06-1-S-VT-0-1	-40 °C	105 °C	Through Hole	XCede®	Press-Fit	30 µin	Header Male Blades	Backplane	48	6	Gold	All
Samtec Inc. HDTM-6-06-1-S-VT-0-1			Through Hole	XCede®	Press-Fit	30 µin	Header Male Blades	Backplane	72	6	Gold	All	12	0.071 in
Samtec Inc. HDTM-3-04-2-S-VT-0-4			Through Hole	XCede®	Press-Fit	30 µin	Header Male Blades	Backplane	24 pos	4	Gold	All	6	0.071 in
Samtec Inc. HDTM-4-08-1-S-VT-0-1	-40 °C	105 °C	Through Hole	XCede®	Press-Fit	30 µin	Header Male Blades	Backplane	64	8	Gold	All				Black
Samtec Inc. HDTM-3-06-1-S-VT-0-2	-40 °C	105 °C	Through Hole	XCede®	Press-Fit	30 µin	Header Male Blades	Backplane	36	6	Gold	All	6	0.071 in	48 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
