9207 010100
ActiveBelden Inc.

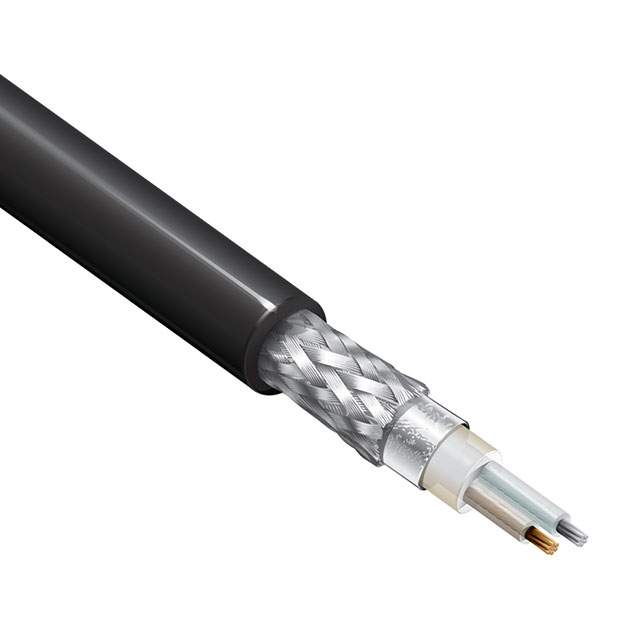

CABLE TWINAX 20 AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9207 010100
ActiveBelden Inc.
CABLE TWINAX 20 AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9207 010100 |
|---|---|
| Cable Type | Twinaxial |
| Conductor Material | Copper, Tinned, Copper, Bare |
| Conductor Strand | 28 AWG (2) |
| Conductor Strand [custom] | 7 |
| Dielectric Diameter [diameter] | 0.236 " |
| Dielectric Diameter [diameter] | 5.99 mm |
| Impedance | 100 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.33 in |
| Jacket (Insulation) Diameter [diameter] | 8.38 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -30 ░C |
| Shield Coverage | 100 %, 85 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Wire Gauge | 20 AWG |
| Wire Gauge [custom] | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 100 | $ 4.47 | |
| 200 | $ 4.25 | |||
| 300 | $ 4.13 | |||
| 500 | $ 3.97 | |||
| 700 | $ 3.88 | |||
| 1000 | $ 3.77 | |||
| 2500 | $ 3.52 | |||
Description
General part information
9207 Series
Twinaxial Cable 20 AWG (2) 100.0' (30.48m) 100 Ohms
