Technical Specifications
Parameters and characteristics for this part
| Specification | 9207 010500 |
|---|---|
| Cable Type | Twinaxial |
| Conductor Material | Copper, Tinned, Copper, Bare |
| Conductor Strand | 28 AWG (2) |
| Conductor Strand [custom] | 7 |
| Dielectric Diameter [diameter] | 0.083 " |
| Dielectric Diameter [diameter] | 2.11 mm |
| Impedance | 100 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.33 in |
| Jacket (Insulation) Diameter [diameter] | 8.38 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 152.4 m |
| Length | 6000 in |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -30 ░C |
| Shield Coverage | 100 %, 85 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Wire Gauge | 20 AWG |
| Wire Gauge [custom] | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 3.66 | |
Description
General part information
9207 Series

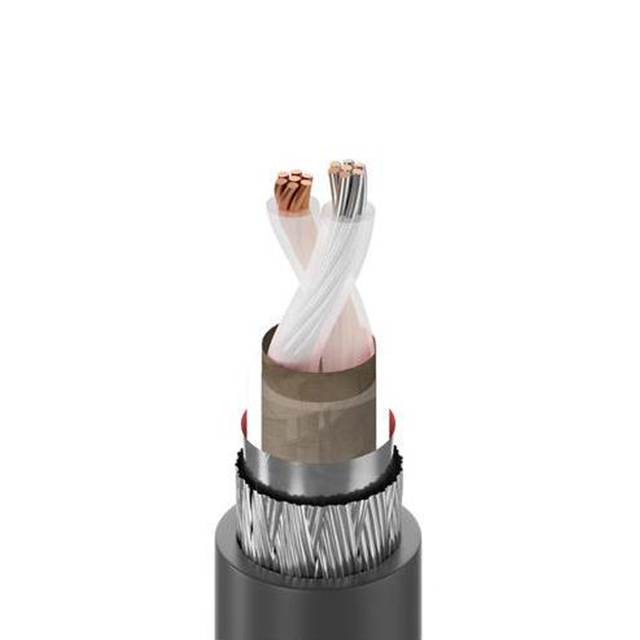

Twinaxial Cable 20 AWG (2) 500.0' (152.40m) 100 Ohms
