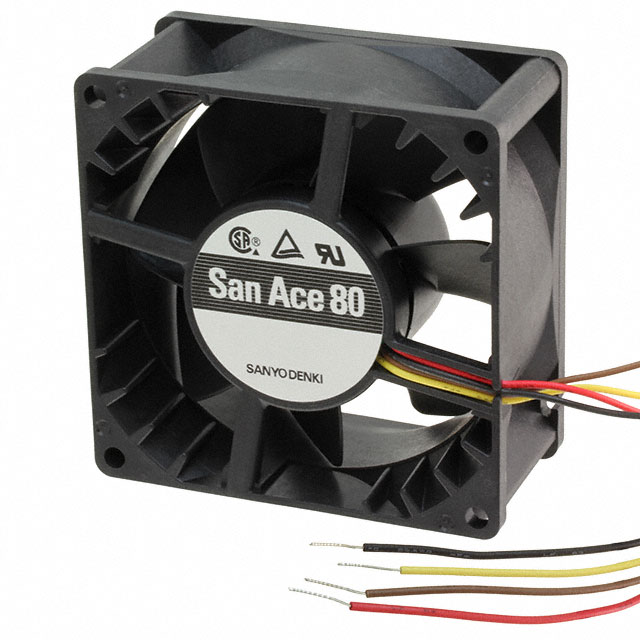

Specification	9S0812P4M01

Air Flow	29.3 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	0.08 A
Fan Type	Tubeaxial
Features	PWM Control, Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	22 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	1.32 W
RPM	2800 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.11 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.8 VDC
Voltage Range (Min)	5 V
Weight	0.167 lb
Width	25 mm

9S0812 Series

Part	Air Flow	Static Pressure	Voltage - Rated	Termination Leads Count	Termination Type	Termination	RPM	Fan Type	Width	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Operating Temperature (Max)	Operating Temperature (Min)	Bearing Type	Approval Agency	Weight	Power (Watts)	Features	Noise	Material - Blade	Material - Frame	Current Rating	Voltage Range (Max)	Voltage Range (Min)	Lifetime
Sanyo Denki America Inc. 9S0812L4D01	23.3 CFM	0.073 in H2O	12 VAC	3	Wire Leads	3 Wire Leads	2000 RPM	Tubeaxial	25 mm	80 mm	Square	80 mm	158 °F	14 °F	Ball	CSA TUV UL	0.167 lb	600 mW	Locked Rotor Sensor	16 dB	Plastic	Plastic	50 mA	13.8 VDC	6 VDC	40000 Hrs
Sanyo Denki America Inc. 9S0812F4D011	32.8 CFM	0.143 in H2O	12 VAC	3	Wire Leads	3 Wire Leads	2800 RPM	Tubeaxial	25 mm	80 mm	Square	80 mm	158 °F	14 °F	Ball	CSA TUV UL	0.167 lb	1.32 W	Locked Rotor Sensor	24 dB	Plastic	Plastic	110 mA	13.8 VDC	5 V	40000 Hrs
Sanyo Denki America Inc. 9S0812L402	23.3 CFM	0.073 in H2O	12 VAC	2 leads	Wire Leads	2 Wire Leads	2000 RPM	Tubeaxial	25 mm	80 mm	Square	80 mm	158 °F	14 °F	Ball	CSA TUV UL	0.167 lb	600 mW	Locked Rotor Protection	16 dB	Plastic	Plastic	50 mA	13.8 VDC	6 VDC	40000 Hrs
Sanyo Denki America Inc. 9S0812F4D01	32.8 CFM	0.143 in H2O	12 VAC	3	Wire Leads	3 Wire Leads	2800 RPM	Tubeaxial	25 mm	80 mm	Square	80 mm	158 °F	14 °F	Ball	CSA TUV UL	0.167 lb	1.32 W	Locked Rotor Sensor	24 dB	Plastic	Plastic	110 mA	13.8 VDC	5 V	40000 Hrs
Sanyo Denki America Inc. 9S0812H401	39.5 CFM	0.2 in H2O	12 VAC	3	Wire Leads	3 Wire Leads	3400 RPM	Tubeaxial	25 mm	80 mm	Square	80 mm	158 °F	14 °F	Ball	CSA UL	0.167 lb	2.76 W	Locked Rotor Protection Speed Sensor (Tach)	31 dB	Plastic	Plastic	0.23 A	13.2 VDC	5 V	40000 Hrs
Sanyo Denki America Inc. 9S0812F401	32.8 CFM	0.143 in H2O	12 VAC	3	Wire Leads	3 Wire Leads	2800 RPM	Tubeaxial	25 mm	80 mm	Square	80 mm	158 °F	14 °F	Ball	CSA TUV UL	0.167 lb	1.32 W	Locked Rotor Protection Speed Sensor (Tach)	24 dB	Plastic	Plastic	110 mA	13.8 VDC	5 V	40000 Hrs
Sanyo Denki America Inc. 9S0812M402	29.3 CFM	0.11 in H2O	12 VAC	2 leads	Wire Leads	2 Wire Leads	2500 RPM	Tubeaxial	25 mm	80 mm	Square	80 mm	158 °F	14 °F	Ball	CSA TUV UL	0.167 lb	960 mW	Locked Rotor Protection	22 dB	Plastic	Plastic	0.08 A	13.8 VDC	5 V	40000 Hrs
Sanyo Denki America Inc. 9S0812L4021	23.3 CFM	0.073 in H2O	12 VAC	2 leads	Wire Leads	2 Wire Leads	2000 RPM	Tubeaxial	25 mm	80 mm	Square	80 mm	158 °F	14 °F	Ball	CSA TUV UL	0.167 lb	600 mW	Locked Rotor Protection	16 dB	Plastic	Plastic	50 mA	13.8 VDC	6 VDC	40000 Hrs
Sanyo Denki America Inc. 9S0812H4011	39.5 CFM	0.2 in H2O	12 VAC	3	Wire Leads	3 Wire Leads	3400 RPM	Tubeaxial	25 mm	80 mm	Square	80 mm	158 °F	14 °F	Ball	CSA UL	0.167 lb	2.76 W	Locked Rotor Protection Speed Sensor (Tach)	31 dB	Plastic	Plastic	0.23 A	13.2 VDC	5 V	40000 Hrs
Sanyo Denki America Inc. 9S0812P4M01	29.3 CFM	0.11 in H2O	12 VAC	4 leads	Wire Leads	4 Wire Leads	2800 RPM	Tubeaxial	25 mm	80 mm	Square	80 mm	158 °F	14 °F	Ball	CSA TUV UL	0.167 lb	1.32 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	22 dB	Plastic	Plastic	0.08 A	13.8 VDC	5 V	40000 Hrs
