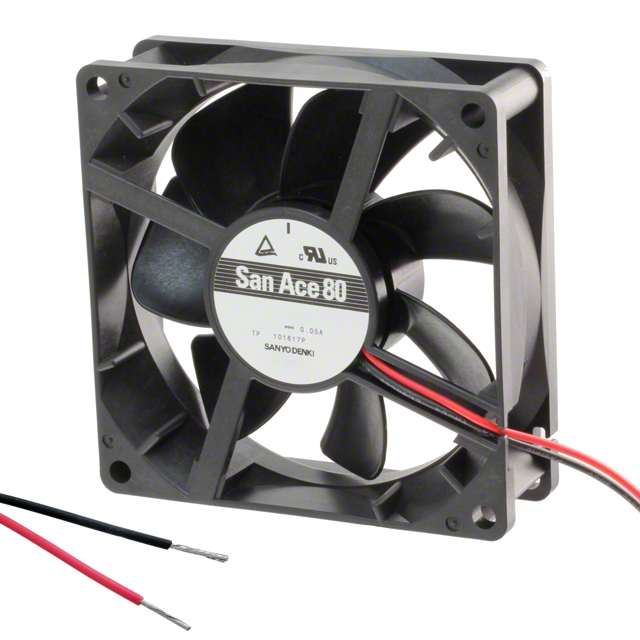

9S0812L4021
ActiveSanyo Denki America Inc.
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9S0812L4021
ActiveSanyo Denki America Inc.
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9S0812L4021 |
|---|---|
| Air Flow | 23.3 CFM |
| Air Flow | 0.652 mł/min |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 50 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 16 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 600 mW |
| RPM | 2000 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 18.2 Pa |
| Static Pressure | 0.073 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 6 VDC |
| Weight | 0.167 lb |
| Weight | 75.75 g |
| Width [y] | 25 mm |
9S0812 Series
| Part | Width [y] | Material - Frame | Static Pressure | Static Pressure | Size / Dimension [y] | Size / Dimension [x] | Bearing Type | Voltage - Rated | Termination | Current Rating (Amps) | Power (Watts) | Weight | Weight | Voltage Range [Max] | Voltage Range [Min] | Fan Type | Air Flow | Air Flow | Lifetime @ Temp. | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | RPM | Material - Blade | Features | Noise | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sanyo Denki America Inc. | 25 mm | Plastic | 18.2 Pa | 0.073 in H2O | 80 mm | 80 mm | Ball | 12 VDC | 3 Wire Leads | 50 mA | 600 mW | 0.167 lb | 75.75 g | 13.8 VDC | 6 VDC | Tubeaxial | 23.3 CFM | 0.652 mł/min | 40000 Hrs | 70 °C | 70 °C | -10 °C | -10 °C | 2000 RPM | Plastic | Locked Rotor Sensor | 16 dB | CSA TUV UL |
Sanyo Denki America Inc. | 25 mm | Plastic | 35.6 Pa | 0.143 in H2O | 80 mm | 80 mm | Ball | 12 VDC | 3 Wire Leads | 110 mA | 1.32 W | 0.167 lb | 75.75 g | 13.8 VDC | 5 VDC | Tubeaxial | 32.8 CFM | 0.918 mł/min | 40000 Hrs | 70 °C | 70 °C | -10 °C | -10 °C | 2800 RPM | Plastic | Locked Rotor Sensor | 24 dB | CSA TUV UL |
Sanyo Denki America Inc. | 25 mm | Plastic | 35.6 Pa | 0.143 in H2O | 80 mm | 80 mm | Ball | 12 VDC | 3 Wire Leads | 110 mA | 1.32 W | 0.167 lb | 75.75 g | 13.8 VDC | 5 VDC | Tubeaxial | 32.8 CFM | 0.918 mł/min | 40000 Hrs | 70 °C | 70 °C | -10 °C | -10 °C | 2800 RPM | Plastic | Locked Rotor Sensor | 24 dB | CSA TUV UL |
Sanyo Denki America Inc. | 25 mm | Plastic | 49.8 Pa | 0.2 in H2O | 80 mm | 80 mm | Ball | 12 VDC | 3 Wire Leads | 0.23 A | 2.76 W | 0.167 lb | 75.75 g | 13.2 VDC | 5 VDC | Tubeaxial | 39.5 CFM | 1.11 m³/min | 40000 Hrs | 70 °C | 70 °C | -10 °C | -10 °C | 3400 RPM | Plastic | Locked Rotor Protection Speed Sensor (Tach) | 31 dB(A) | CSA UL |
Sanyo Denki America Inc. | 25 mm | Plastic | 35.6 Pa | 0.143 in H2O | 80 mm | 80 mm | Ball | 12 VDC | 3 Wire Leads | 110 mA | 1.32 W | 0.167 lb | 75.75 g | 13.8 VDC | 5 VDC | Tubeaxial | 32.8 CFM | 0.918 mł/min | 40000 Hrs | 70 °C | 70 °C | -10 °C | -10 °C | 2800 RPM | Plastic | Locked Rotor Protection Speed Sensor (Tach) | 24 dB | CSA TUV UL |
Sanyo Denki America Inc. | 25 mm | Plastic | 27.4 Pa | 0.11 in H2O | 80 mm | 80 mm | Ball | 12 VDC | 2 Wire Leads | 0.167 lb | 75.75 g | 13.8 VDC | 5 VDC | Tubeaxial | 29.3 CFM | 0.82 m³/min | 40000 Hrs | 70 °C | 70 °C | -10 °C | -10 °C | 2500 RPM | Plastic | 22 dB(A) | CSA TUV UL | |||
Sanyo Denki America Inc. | 25 mm | Plastic | 18.2 Pa | 0.073 in H2O | 80 mm | 80 mm | Ball | 12 VDC | 2 Wire Leads | 50 mA | 600 mW | 0.167 lb | 75.75 g | 13.8 VDC | 6 VDC | Tubeaxial | 23.3 CFM | 0.652 mł/min | 40000 Hrs | 70 °C | 70 °C | -10 °C | -10 °C | 2000 RPM | Plastic | 16 dB | CSA TUV UL | |
Sanyo Denki America Inc. | 25 mm | Plastic | 27.4 Pa | 0.11 in H2O | 80 mm | 80 mm | Ball | 12 VDC | 4 Wire Leads | 1.32 W | 0.167 lb | 75.75 g | 13.8 VDC | 5 VDC | Tubeaxial | 29.3 CFM | 0.82 m³/min | 40000 Hrs | 70 °C | 70 °C | -10 °C | -10 °C | 2800 RPM | Plastic | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 22 dB(A) | CSA TUV UL | |
Sanyo Denki America Inc. | 25 mm | Plastic | 27.4 Pa | 0.11 in H2O | 80 mm | 80 mm | Ball | 12 VDC | 3 Wire Leads | 0.167 lb | 75.75 g | 13.8 VDC | 5 VDC | Tubeaxial | 29.3 CFM | 0.82 m³/min | 40000 Hrs | 70 °C | 70 °C | -10 °C | -10 °C | 2500 RPM | Plastic | Locked Rotor Protection Speed Sensor (Tach) | 22 dB(A) | CSA TUV UL | ||
Sanyo Denki America Inc. | 25 mm | Plastic | 49.8 Pa | 0.2 in H2O | 80 mm | 80 mm | Ball | 12 VDC | 3 Wire Leads | 0.23 A | 2.76 W | 0.167 lb | 75.75 g | 13.2 VDC | 5 VDC | Tubeaxial | 39.5 CFM | 1.11 m³/min | 40000 Hrs | 70 °C | 70 °C | -10 °C | -10 °C | 3400 RPM | Plastic | Locked Rotor Sensor | 31 dB(A) | CSA UL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.23 | |
| 10 | $ 13.59 | |||
| 40 | $ 12.78 | |||
| 80 | $ 12.29 | |||
| 120 | $ 11.32 | |||
| 280 | $ 10.60 | |||
| 520 | $ 10.43 | |||
Description
General part information
9S0812 Series
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 23.3 CFM (0.652m³/min) 2 Wire Leads
