TPS84610RKGR

Active

Texas Instruments

2.95-V TO 6-V INPUT, 6-A SYNCHRONOUS BUCK, INTEGRATED POWER SOLUTION 39-B1QFN -40 TO 85

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTPS84610 2.95-V to 6-V Input, 6-A Synchronous Buck, IP Solution datasheet (Rev. B)Soldering Requirements for BQFN Packages (Rev. C)+8

TPS84610RKGR

Active

Texas Instruments

2.95-V TO 6-V INPUT, 6-A SYNCHRONOUS BUCK, INTEGRATED POWER SOLUTION 39-B1QFN -40 TO 85

Deep-Dive with AI

DocumentsTPS84610 2.95-V to 6-V Input, 6-A Synchronous Buck, IP Solution datasheet (Rev. B)Soldering Requirements for BQFN Packages (Rev. C)+8

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TPS84610RKGR	TPS84610 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Enable, Active High	Enable, Active High
Current - Output (Max) [Max]	6 A	6 A
Efficiency	96 %	96 %
Features	UVLO	UVLO
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	39-BQFN Exposed Pad	39-BQFN Exposed Pad
Size / Dimension [x]	0.43 "	0.43 "
Size / Dimension [x]	11 mm	11 mm
Size / Dimension [y]	9 mm	9 mm
Size / Dimension [y]	0.35 "	0.35 "
Size / Dimension [z]	2.8 mm	2.8 mm
Size / Dimension [z]	0.11 in	0.11 in
Supplier Device Package	39-B1QFN (11x9)	39-B1QFN (11x9)
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	6 V	6 V
Voltage - Input (Min) [Min]	2.95 V	2.95 V
Voltage - Output 1 [Max]	3.6 V	3.6 V
Voltage - Output 1 [Min]	0.8 V	0.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow Electronics	N/A	1	$ 5.04
		1	$ 5.04
		10	$ 4.89
		10	$ 4.89
		25	$ 4.63
		100	$ 4.39
		100	$ 4.39
		250	$ 4.22
DigiKey	N/A	1	$ 5.59
		1	$ 5.59
		5	$ 5.27
		5	$ 5.27
		10	$ 5.13
		10	$ 5.13
		25	$ 4.96
		25	$ 4.96
		50	$ 4.84
		50	$ 4.84
		100	$ 4.72
		100	$ 4.72
		250	$ 4.56
		250	$ 4.56
		500	$ 4.45
		500	$ 4.45
		1000	$ 4.34
		1000	$ 4.34
		1500	$ 4.27
		1500	$ 4.27
Digikey	Cut Tape (CT)	1	$ 5.06
		5	$ 4.98
		10	$ 4.91
		25	$ 4.77
		50	$ 4.62
		100	$ 4.48
		250	$ 4.33
	Digi-Reel®	1	$ 5.06
		5	$ 4.98
		10	$ 4.91
		25	$ 4.77
		50	$ 4.62
		100	$ 4.48
		250	$ 4.33
	Tape & Reel (TR)	500	$ 4.04
LCSC	N/A	1	$ 5.02
		8	$ 6.43
		10	$ 4.40
		19	$ 5.28
		30	$ 4.03
		30	$ 5.11
		41	$ 4.95
		53	$ 4.78
		70	$ 4.29
		100	$ 3.71
Mouser Electronics	N/A	1	$ 5.07
		1	$ 5.07
		10	$ 4.97
		10	$ 4.97
		25	$ 4.69
		25	$ 4.69
		100	$ 4.55
		250	$ 4.33
		250	$ 4.33
		500	$ 4.20
		500	$ 4.20
		1000	$ 4.09
		1000	$ 4.09
Texas Instruments	LARGE T&R	1	$ 4.97
		100	$ 4.05
		250	$ 3.18
		1000	$ 2.70
Verical	N/A	2	$ 5.04
		2	$ 5.04
		10	$ 4.89
		10	$ 4.89
		25	$ 4.63
		100	$ 4.39
		100	$ 4.39
		250	$ 4.22
Win Source Electronics	N/A	8	$ 6.43
		19	$ 5.28
		30	$ 5.11
		41	$ 4.95
		53	$ 4.78
		70	$ 4.29

TPS84610 Series

2.95-V to 6-V Input, 6-A synchronous buck, integrated power solution

Part	Efficiency	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Package / Case	Features	Control Features	Type	Supplier Device Package	Mounting Type	Number of Outputs	Voltage - Input (Min) [Min]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Operating Temperature [Min]	Operating Temperature [Max]

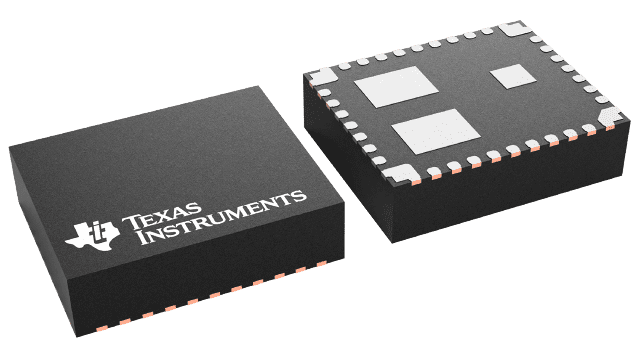

Texas Instruments TPS84610RKGT The TPS84610RKG is an easy-to-use integrated power solution that combines a 6-A DC/DC converter with power MOSFETs, an inductor, and passives into a low profile, BQFN package. This total power solution requires as few as 3 external components and eliminates the loop compensation and magnetics part selection process. The 9×11×2.8 mm BQFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design with greater than 90% efficiency and excellent power dissipation with a thermal impedance of 12°C/W junction to ambient. The device delivers the full 6-A rated output current at 85°C ambient temperature without airflow. The TPS84610 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering performance DSPs and FPGAs. Advanced packaging technology afford a robust and reliable power solution compatible with standard QFN mounting and testing techniques. The TPS84610RKG is an easy-to-use integrated power solution that combines a 6-A DC/DC converter with power MOSFETs, an inductor, and passives into a low profile, BQFN package. This total power solution requires as few as 3 external components and eliminates the loop compensation and magnetics part selection process. The 9×11×2.8 mm BQFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design with greater than 90% efficiency and excellent power dissipation with a thermal impedance of 12°C/W junction to ambient. The device delivers the full 6-A rated output current at 85°C ambient temperature without airflow. The TPS84610 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering performance DSPs and FPGAs. Advanced packaging technology afford a robust and reliable power solution compatible with standard QFN mounting and testing techniques.	96 %	6 V	6 A	39-BQFN Exposed Pad	UVLO	Active High, Enable	Non-Isolated PoL Module	39-B1QFN (11x9)	Surface Mount	1	2.95 V	ITE (Commercial)	0.43 "	9 mm	0.35 "	11 mm	2.8 mm	0.11 in	0.8 V	3.6 V	-40 °C	85 °C
Texas Instruments TPS84610RKGR The TPS84610RKG is an easy-to-use integrated power solution that combines a 6-A DC/DC converter with power MOSFETs, an inductor, and passives into a low profile, BQFN package. This total power solution requires as few as 3 external components and eliminates the loop compensation and magnetics part selection process. The 9×11×2.8 mm BQFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design with greater than 90% efficiency and excellent power dissipation with a thermal impedance of 12°C/W junction to ambient. The device delivers the full 6-A rated output current at 85°C ambient temperature without airflow. The TPS84610 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering performance DSPs and FPGAs. Advanced packaging technology afford a robust and reliable power solution compatible with standard QFN mounting and testing techniques. The TPS84610RKG is an easy-to-use integrated power solution that combines a 6-A DC/DC converter with power MOSFETs, an inductor, and passives into a low profile, BQFN package. This total power solution requires as few as 3 external components and eliminates the loop compensation and magnetics part selection process. The 9×11×2.8 mm BQFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design with greater than 90% efficiency and excellent power dissipation with a thermal impedance of 12°C/W junction to ambient. The device delivers the full 6-A rated output current at 85°C ambient temperature without airflow. The TPS84610 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering performance DSPs and FPGAs. Advanced packaging technology afford a robust and reliable power solution compatible with standard QFN mounting and testing techniques.	96 %	6 V	6 A	39-BQFN Exposed Pad	UVLO	Active High, Enable	Non-Isolated PoL Module	39-B1QFN (11x9)	Surface Mount	1	2.95 V	ITE (Commercial)	0.43 "	9 mm	0.35 "	11 mm	2.8 mm	0.11 in	0.8 V	3.6 V	-40 °C	85 °C

Description

General part information

TPS84610 Series

The TPS84610RKG is an easy-to-use integrated power solution that combines a 6-A DC/DC converter with power MOSFETs, an inductor, and passives into a low profile, BQFN package. This total power solution requires as few as 3 external components and eliminates the loop compensation and magnetics part selection process.

The 9×11×2.8 mm BQFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design with greater than 90% efficiency and excellent power dissipation with a thermal impedance of 12°C/W junction to ambient. The device delivers the full 6-A rated output current at 85°C ambient temperature without airflow.

The TPS84610 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering performance DSPs and FPGAs. Advanced packaging technology afford a robust and reliable power solution compatible with standard QFN mounting and testing techniques.
