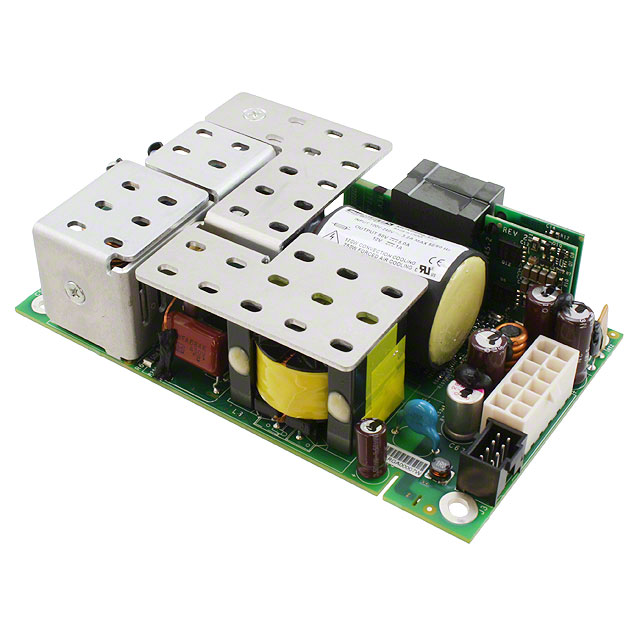

MVAC250-48AFD

Active

Murata Power Solutions Inc.

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 250W @ 250LFM, 170 W, 90V AC TO 264V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

MVAC250-48AFD

Active

Murata Power Solutions Inc.

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 250W @ 250LFM, 170 W, 90V AC TO 264V AC

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MVAC250-48AFD	MVAC250 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	CCC, CE, VDE, CB, cURus	CB, CE, cURus, VDE, CCC
Current - Output 1	5.2 A	5.2 - 20.8 A
Current - Output 2	1 A	1 A
Current - Output 3	2 A	2 A
Efficiency	93 %	93 %
Features	Universal Input, Remote Sense, Hot Swappable, Remote On/Off, Standby Output, PFC, Load Sharing	Universal Input, Remote Sense, Hot Swappable, Remote On/Off, Standby Output, PFC, Load Sharing, DC Input Capable
Minimum Load Required	-	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	3	1 - 3
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	170 W	170 W
Power (Watts)	250 W	250 W
Size / Dimension	-	76.2 mm
Size / Dimension	-	35.6 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	38.1 mm	38.1 mm
Size / Dimension [z]	1.5 "	1.4 - 1.5 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	50 V	12 - 50 V
Voltage - Output 2	12 V	12 V
Voltage - Output 3	5 V	5 V

MVAC250 Series

Switching Power Supplies AC/DC 250W, 12V, 12VIAFO, 5VSTDBY

Part	Applications	Approval Agency	Voltage - Output 1	Mounting Type	Voltage - Isolation	Efficiency	Features	Type	Power (Watts)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Current - Output 2	Voltage - Output 2	Voltage - Output 3	Current - Output 3	Size / Dimension [z]	Size / Dimension [y]
Murata Power Solutions Inc. MVAC250-24AFT	ITE (Commercial), Medical	CB, CE, cURus, VDE	24 V	Chassis Mount	4000 V	93 %	Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	170 W	250 W	-10 °C	70 °C	10.4 A	90 VAC	264 VAC	127 mm	3 "	1.4 "	5 in	76.2 mm	35.6 mm	1
Murata Power Solutions Inc. MVAC250-12AFD	ITE (Commercial), Medical	CB, CCC, CE, cURus, VDE	12 V	Chassis Mount	4000 V	93 %	DC Input Capable, Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	170 W	250 W	-10 °C	70 °C	20.8 A	90 VAC	264 VAC	127 mm	3 "	1.5 "	5 in			3	1 A	12 V	5 V	2 A	38.1 mm	76.2 mm
Murata Power Solutions Inc. MVAC250-12F	ITE (Commercial), Medical	CB, CCC, CE, cURus, VDE	12 V	Chassis Mount	4000 V	93 %	Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	170 W	250 W	-10 °C	70 °C	20.8 A	90 VAC	264 VAC	127 mm	3 "	1.5 "	5 in			2	1 A	12 V			38.1 mm	76.2 mm
Murata Power Solutions Inc. MVAC250-48F	ITE (Commercial), Medical	CB, CCC, CE, cURus, VDE	50 V	Chassis Mount	4000 V	93 %	Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	170 W	250 W	-10 °C	70 °C	5.2 A	90 VAC	264 VAC	127 mm	3 "	1.5 "	5 in			2	1 A	12 V			38.1 mm	76.2 mm
Murata Power Solutions Inc. MVAC250-48AFD	ITE (Commercial), Medical	CB, CCC, CE, cURus, VDE	50 V	Chassis Mount	4000 V	93 %	Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	170 W	250 W	-10 °C	70 °C	5.2 A	90 VAC	264 VAC	127 mm	3 "	1.5 "	5 in			3	1 A	12 V	5 V	2 A	38.1 mm	76.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MVAC250 Series

Switching Power Supplies AC/DC 250W, 12V, 12VIAFO, 5VSTDBY

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
