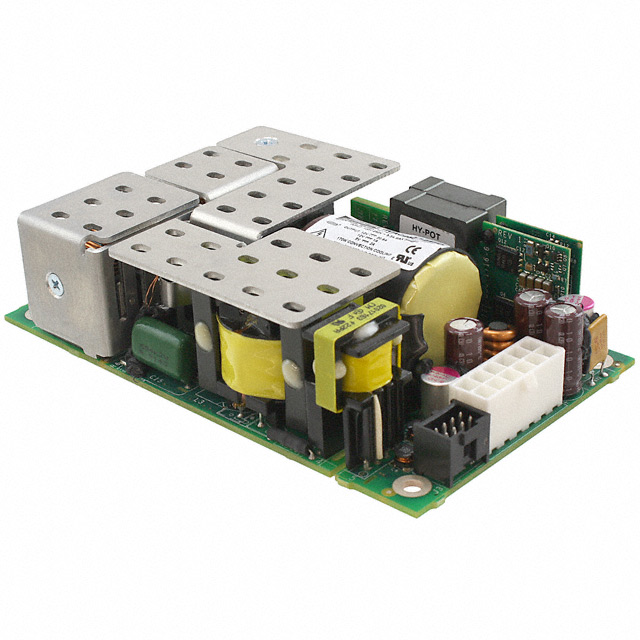

MVAC250-12AFD

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 2X12V 5V 170W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MVAC250-12AFD

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 2X12V 5V 170W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MVAC250 Series

Switching Power Supplies AC/DC 250W, 12V, 12VIAFO, 5VSTDBY

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MVAC250-12AFD	MVAC250 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	CCC, CE, VDE, CB, cURus	CB, CE, cURus, VDE, CCC
Current - Output 1	20.8 A	5.2 - 20.8 A
Current - Output 2	1 A	1 A
Current - Output 3	2 A	2 A
Efficiency	93 %	93 %
Features	Hot Swappable, Load Sharing, Universal Input, Remote On/Off, DC Input Capable, Remote Sense, Standby Output, PFC	Universal Input, Remote Sense, Hot Swappable, Remote On/Off, Standby Output, PFC, Load Sharing, DC Input Capable
Minimum Load Required	-	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	3	1 - 3
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	170 W	170 W
Power (Watts)	250 W	250 W
Size / Dimension	-	76.2 mm
Size / Dimension	-	35.6 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	38.1 mm	38.1 mm
Size / Dimension [z]	1.5 "	1.4 - 1.5 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	12 V	12 - 50 V
Voltage - Output 2	12 V	12 V
Voltage - Output 3	5 V	5 V

MVAC250 Series

Switching Power Supplies AC/DC 250W, 12V, 12VIAFO, 5VSTDBY

Part	Applications	Approval Agency	Voltage - Output 1	Mounting Type	Voltage - Isolation	Efficiency	Features	Type	Power (Watts)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Current - Output 2	Voltage - Output 2	Voltage - Output 3	Current - Output 3	Size / Dimension [z]	Size / Dimension [y]
Murata Power Solutions Inc. MVAC250-24AFT	ITE (Commercial), Medical	CB, CE, cURus, VDE	24 V	Chassis Mount	4000 V	93 %	Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	170 W	250 W	-10 °C	70 °C	10.4 A	90 VAC	264 VAC	127 mm	3 "	1.4 "	5 in	76.2 mm	35.6 mm	1
Murata Power Solutions Inc. MVAC250-12AFD	ITE (Commercial), Medical	CB, CCC, CE, cURus, VDE	12 V	Chassis Mount	4000 V	93 %	DC Input Capable, Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	170 W	250 W	-10 °C	70 °C	20.8 A	90 VAC	264 VAC	127 mm	3 "	1.5 "	5 in			3	1 A	12 V	5 V	2 A	38.1 mm	76.2 mm
Murata Power Solutions Inc. MVAC250-12F	ITE (Commercial), Medical	CB, CCC, CE, cURus, VDE	12 V	Chassis Mount	4000 V	93 %	Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	170 W	250 W	-10 °C	70 °C	20.8 A	90 VAC	264 VAC	127 mm	3 "	1.5 "	5 in			2	1 A	12 V			38.1 mm	76.2 mm
Murata Power Solutions Inc. MVAC250-48F	ITE (Commercial), Medical	CB, CCC, CE, cURus, VDE	50 V	Chassis Mount	4000 V	93 %	Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	170 W	250 W	-10 °C	70 °C	5.2 A	90 VAC	264 VAC	127 mm	3 "	1.5 "	5 in			2	1 A	12 V			38.1 mm	76.2 mm
Murata Power Solutions Inc. MVAC250-48AFD	ITE (Commercial), Medical	CB, CCC, CE, cURus, VDE	50 V	Chassis Mount	4000 V	93 %	Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Open Frame	170 W	250 W	-10 °C	70 °C	5.2 A	90 VAC	264 VAC	127 mm	3 "	1.5 "	5 in			3	1 A	12 V	5 V	2 A	38.1 mm	76.2 mm
