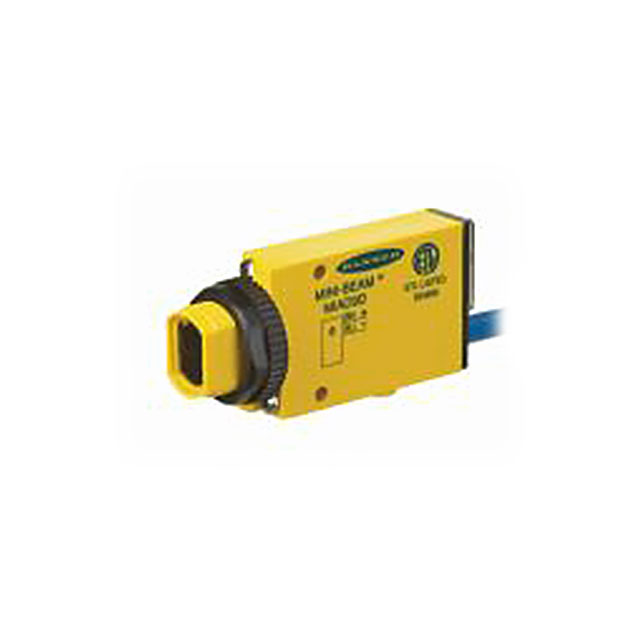

Specification	MIAD9FQ

Adjustment Type	Adjustable, Potentiometer
Connection Method	Connector
Ingress Protection	NEMA 1, 13 IEC IP67, 3S, 2, 4X, 3, 12, 4, 6, IP67, 13, IEC
Light Source	Infrared
Light Source Wavelength (Infrared)	880 nm
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Analog
Response Time	5 ms
Sensing Method	Fiber Optic
Voltage - Supply (Maximum)	15 V
Voltage - Supply (Minimum)	5 V

MIAD9 Series

Part	Ingress Protection	Sensing Method	Response Time	Operating Temperature (Min)	Operating Temperature (Max)	Output Configuration	Adjustment Type	Light Source Wavelength (Red)	Light Source	Sensing Distance	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Connection Method	Adjustment Turns	Cable Length	Light Source Wavelength (Infrared)
BANNER ENGINEERING MIAD9LVAGQ	12 13 13 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Polarized Retroreflective	5 ms	-40 °C	70 °C	Dark-ON Light-ON	Adjustable Potentiometer	650 nm	Red	78.74 "	15 V	5 V	Connector
BANNER ENGINEERING MIAD9CV2	12 13 13 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Convergent	5 ms	-40 °C	70 °C	Dark-ON Light-ON	Adjustable Potentiometer	650 nm	Red	1.693 "	15 V	5 V	Cable	15 turn	78.74 in
BANNER ENGINEERING MIAD9DQ	12 13 13 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Diffuse	5 ms	-40 °C	70 °C	Dark-ON Light-ON	Adjustable Potentiometer		Infrared	14.961 "	15 V	5 V	Connector			880 nm
BANNER ENGINEERING MIAD9FQ	12 13 13 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Fiber Optic	5 ms	-40 °C	70 °C	Analog	Adjustable Potentiometer		Infrared		15 V	5 V	Connector			880 nm
BANNER ENGINEERING MIAD9LVQ	12 13 13 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	NonPolarized Retroreflective	5 ms	-40 °C	70 °C	Dark-ON Light-ON	Adjustable Potentiometer	650 nm	Red	196.85 "	15 V	5 V	Connector
