MIAD9 Series

Part	Ingress Protection	Sensing Method	Response Time	Operating Temperature (Min)	Operating Temperature (Max)	Output Configuration	Adjustment Type	Light Source Wavelength (Red)	Light Source	Sensing Distance	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Connection Method	Adjustment Turns	Cable Length	Light Source Wavelength (Infrared)
BANNER ENGINEERING MIAD9LVAGQ	12 13 13 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Polarized Retroreflective	5 ms	-40 °C	70 °C	Dark-ON Light-ON	Adjustable Potentiometer	650 nm	Red	78.74 "	15 V	5 V	Connector

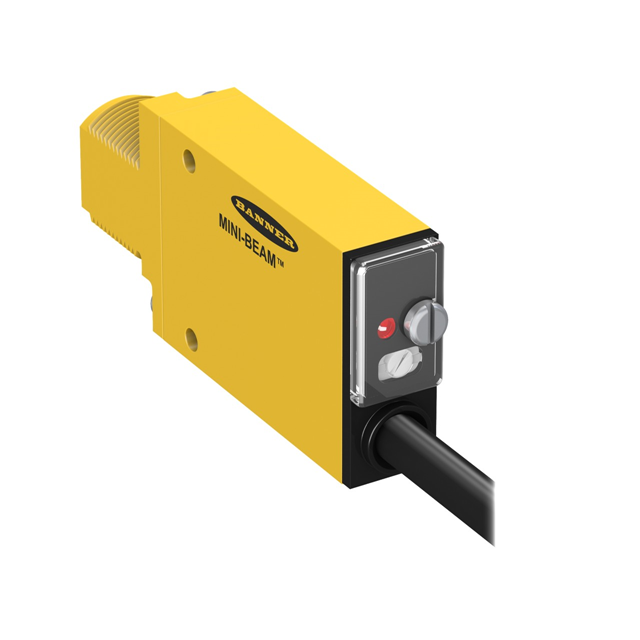

BANNER ENGINEERING MIAD9CV2	12 13 13 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Convergent	5 ms	-40 °C	70 °C	Dark-ON Light-ON	Adjustable Potentiometer	650 nm	Red	1.693 "	15 V	5 V	Cable	15 turn	78.74 in
BANNER ENGINEERING MIAD9DQ	12 13 13 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Diffuse	5 ms	-40 °C	70 °C	Dark-ON Light-ON	Adjustable Potentiometer		Infrared	14.961 "	15 V	5 V	Connector			880 nm
BANNER ENGINEERING MIAD9FQ	12 13 13 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	Fiber Optic	5 ms	-40 °C	70 °C	Analog	Adjustable Potentiometer		Infrared		15 V	5 V	Connector			880 nm
BANNER ENGINEERING MIAD9LVQ	12 13 13 IEC IP67 2 3 3S 4 4X 6 IEC IP67 NEMA 1	NonPolarized Retroreflective	5 ms	-40 °C	70 °C	Dark-ON Light-ON	Adjustable Potentiometer	650 nm	Red	196.85 "	15 V	5 V	Connector
