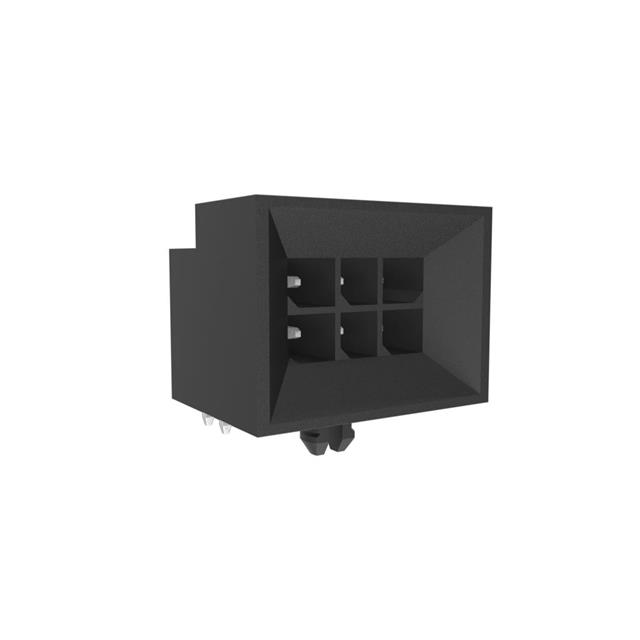

Specification	10144754-0611LF

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	80 µin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.469 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.118 in
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	600 V
Voltage Rating (Type)	DC

10144754 Series

Part	Voltage Rating	Voltage Rating (Type)	Shrouding	Contact Shape	Contact Finish - Post	Termination	Connector Type	Insulation Material	Contact Finish - Mating	Contact Type	Contact Finish Thickness - Mating	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Number of Positions Loaded	Material Flammability Rating	Style	Pitch - Mating	Contact Material	Row Spacing - Mating	Insulation Height	Insulation Color	Mounting Type	Number of Positions	Number of Rows	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 10144754-0611LF	600 V	DC	Shrouded - 4 Wall	Square	Tin	Solder	Header	Liquid Crystal Polymer (LCP)	Tin	Male Pin	80 µin	Varies by Wire Gauge	-40 °C	105 °C	Push-Pull	All	UL94 V-0	Board Board or Cable	0.118 in	Copper Alloy	0.118 in	0.469 in	Black	Right Angle Through Hole	6	2
Amphenol ICC (FCI) 10144754-2421LF	600 V	DC	Shrouded - 4 Wall	Square	Tin	Solder	Header	Liquid Crystal Polymer (LCP)	Gold	Male Pin		Varies by Wire Gauge	-40 °C	105 °C	Push-Pull	All	UL94 V-0	Board Board or Cable	0.118 in	Copper Alloy	0.118 in	0.469 in	Black	Right Angle Through Hole	24 pos	2	Flash
Amphenol ICC (FCI) 10144754-0621LF	600 V	DC	Shrouded - 4 Wall	Square	Tin	Solder	Header	Liquid Crystal Polymer (LCP)	Gold	Male Pin		Varies by Wire Gauge	-40 °C	105 °C	Push-Pull	All	UL94 V-0	Board Board or Cable	0.118 in	Copper Alloy	0.118 in	0.469 in	Black	Right Angle Through Hole	6	2	Flash
Amphenol ICC (FCI) 10144754-1221LF	600 V	DC	Shrouded - 4 Wall	Square	Tin	Solder	Header	Liquid Crystal Polymer (LCP)	Gold	Male Pin		Varies by Wire Gauge	-40 °C	105 °C	Push-Pull	All	UL94 V-0	Board Board or Cable	0.118 in	Copper Alloy	0.118 in	0.469 in	Black	Right Angle Through Hole	12	2	Flash
Amphenol ICC (FCI) 10144754-1231LF	600 V	DC	Shrouded - 4 Wall	Square	Tin	Solder	Header	Liquid Crystal Polymer (LCP)	Gold	Male Pin	15 µin	Varies by Wire Gauge	-40 °C	105 °C	Push-Pull	All	UL94 V-0	Board Board or Cable	0.118 in	Copper Alloy	0.118 in	0.469 in	Black	Right Angle Through Hole	12	2
