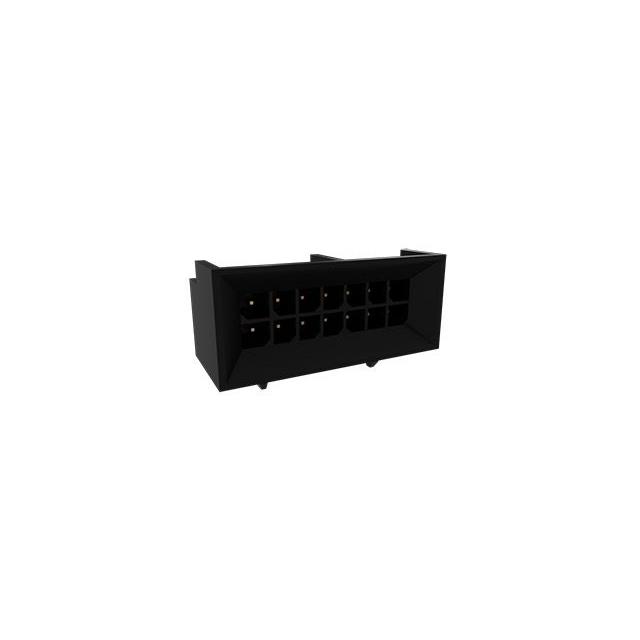

10144754-1231LF
ActiveAmphenol ICC (FCI)
CONN PWR3.0 BMI
Deep-Dive with AI
Search across all available documentation for this part.
10144754-1231LF
ActiveAmphenol ICC (FCI)
CONN PWR3.0 BMI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10144754-1231LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.469 in |
| Insulation Height | 11.9 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 650 | $ 3.02 | |
Description
General part information
10144754 Series
Connector Header Through Hole, Right Angle 12 position 0.118" (3.00mm)
