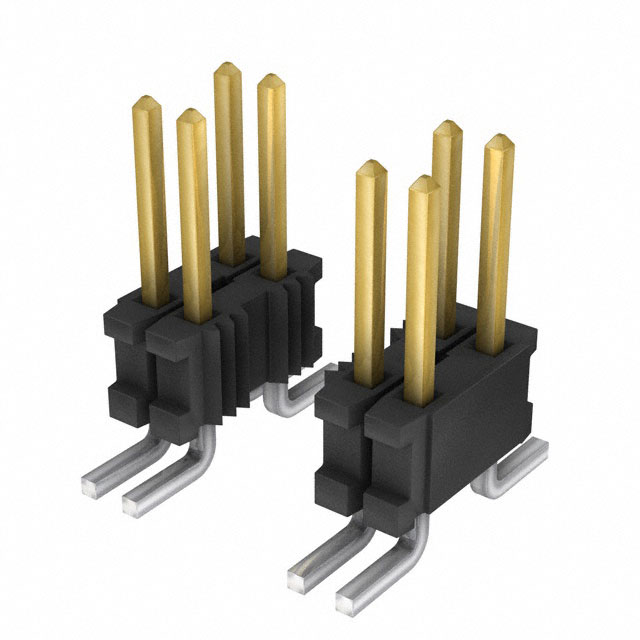

FTR-110-51-S-D-06

Active

Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTR Series Other Related Documents 03 FTR Series Other Related Documents 01 +2

FTR-110-51-S-D-06

Active

Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

DocumentsFTR Series Other Related Documents 03 FTR Series Other Related Documents 01 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTR-110-51-S-D-06

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.19 "
Contact Length - Mating	4.83 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	19
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

FTR-110 Series

Headers & Wire Housings Surface Mount Micro Header, 0.050" x 0.100" Pitch

...

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Number of Rows	Number of Positions Loaded	Number of Positions	Contact Type	Mounting Type	Contact Finish - Post	Shrouding	Current Rating (Amps)	Insulation Material	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Mating	Material Flammability Rating	Connector Type	Number of Positions Loaded	Features	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. FTR-111-03-L-D-TR	2.54 mm	0.1 in	Square	Phosphor Bronze	-55 °C	125 °C	Black	10 çin	0.25 çm	0.05 in	1.27 mm	2	All	22 positions	Male Pin	Surface Mount	Tin	Unshrouded	3.1 A	Liquid Crystal Polymer (LCP)	Solder	0.125 in	3.18 mm	0.1 in	2.54 mm	Push-Pull	Gold	UL94 V-0	Header
Samtec Inc. FTR-110-03-S-D	2.54 mm	0.1 in	Square	Phosphor Bronze	-55 °C	125 °C	Black	30 Áin	0.76 Ám	0.05 in	1.27 mm	2	All	20	Male Pin	Surface Mount	Tin	Unshrouded	3.1 A	Liquid Crystal Polymer (LCP)	Solder	0.125 in	3.18 mm	0.1 in	2.54 mm	Push-Pull	Gold	UL94 V-0	Header
Samtec Inc. FTR-110-51-S-D-06	2.54 mm	0.1 in	Square	Phosphor Bronze	-55 °C	125 °C	Black	30 Áin	0.76 Ám	0.05 in	1.27 mm	2		20	Male Pin	Surface Mount	Tin	Unshrouded	3.1 A	Liquid Crystal Polymer (LCP)	Solder	0.19 "	4.83 mm	0.1 in	2.54 mm	Push-Pull	Gold	UL94 V-0	Header	19
Samtec Inc. FTR-110-01-L-D-A	2.54 mm	0.1 in	Square	Phosphor Bronze	-55 °C	125 °C	Black	10 çin	0.25 çm	0.05 in	1.27 mm	2	All	20	Male Pin	Surface Mount	Tin	Unshrouded	3.1 A	Liquid Crystal Polymer (LCP)	Solder		5.84 mm	0.1 in	2.54 mm	Push-Pull	Gold	UL94 V-0	Header		Board Guide	0.23 in
Samtec Inc. FTR-110-52-L-D-P	2.54 mm	0.1 in	Square	Phosphor Bronze	-55 °C	125 °C	Black	10 çin	0.25 çm	0.05 in	1.27 mm	2	All	20	Male Pin	Surface Mount	Tin	Unshrouded	3.1 A	Liquid Crystal Polymer (LCP)	Solder	0.205 in	5.21 mm	0.1 in	2.54 mm	Push-Pull	Gold	UL94 V-0	Header		Pick and Place
Samtec Inc. FTR-110-02-L-D	2.54 mm	0.1 in	Square	Phosphor Bronze	-55 °C	125 °C	Black	10 çin	0.25 çm	0.05 in	1.27 mm	2	All	20	Male Pin	Surface Mount	Tin	Unshrouded	3.1 A	Liquid Crystal Polymer (LCP)	Solder	0.1 in	2.54 mm	0.1 in	2.54 mm	Push-Pull	Gold	UL94 V-0	Header
Samtec Inc. FTR-110-02-L-D-06	2.54 mm	0.1 in	Square	Phosphor Bronze	-55 °C	125 °C	Black	10 çin	0.25 çm	0.05 in	1.27 mm	2		20	Male Pin	Surface Mount	Tin	Unshrouded	3.1 A	Liquid Crystal Polymer (LCP)	Solder	0.1 in	2.54 mm	0.1 in	2.54 mm	Push-Pull	Gold	UL94 V-0	Header	19
Samtec Inc. FTR-130-01-L-D-A-P	2.54 mm	0.1 in	Square	Phosphor Bronze	-55 °C	125 °C	Black	10 çin	0.25 çm	0.05 in	1.27 mm	2	All	60	Male Pin	Surface Mount	Tin	Unshrouded	3.1 A	Liquid Crystal Polymer (LCP)	Solder		5.84 mm	0.1 in	2.54 mm	Push-Pull	Gold	UL94 V-0	Header		Board Guide Pick and Place	0.23 in
Samtec Inc. FTR-110-03-G-D-P	2.54 mm	0.1 in	Square	Phosphor Bronze	-55 °C	125 °C	Black	10 çin	0.25 çm	0.05 in	1.27 mm	2	All	20	Male Pin	Surface Mount	Gold	Unshrouded	3.1 A	Liquid Crystal Polymer (LCP)	Solder	0.125 in	3.18 mm	0.1 in	2.54 mm	Push-Pull	Gold	UL94 V-0	Header		Pick and Place		3 µin	0.076 µm
Samtec Inc. FTR-110-54-G-D	2.54 mm	0.1 in	Square	Phosphor Bronze	-55 °C	125 °C	Black	10 çin	0.25 çm	0.05 in	1.27 mm	2	All	20	Male Pin	Surface Mount	Gold	Unshrouded	3.1 A	Liquid Crystal Polymer (LCP)	Solder	0.335 in	8.51 mm	0.1 in	2.54 mm	Push-Pull	Gold	UL94 V-0	Header				3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.25
		10	$ 4.02
		100	$ 3.11
		500	$ 2.63
		1000	$ 2.46
