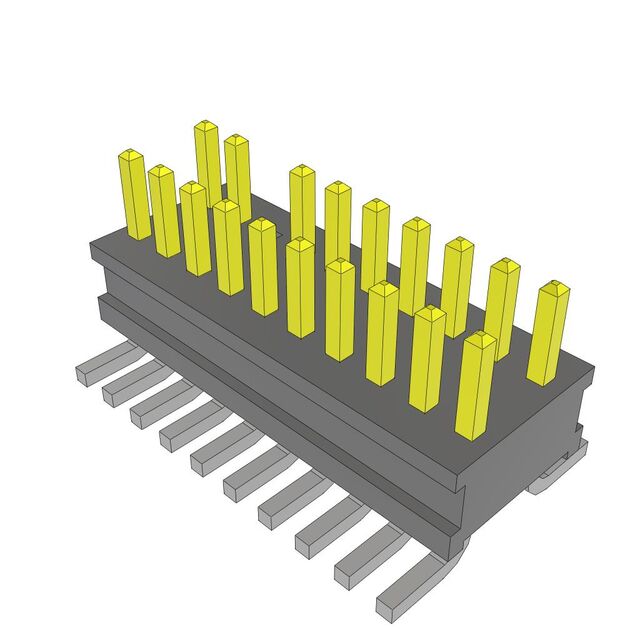

FTR-110-02-L-D-06 - FTR-110-02-L-D-06

FTR-110-02-L-D-06

Active
Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTR Series Other Related Documents 03FTR Series Other Related Documents 01+2
FTR-110-02-L-D-06 - FTR-110-02-L-D-06

FTR-110-02-L-D-06

Active
Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

DocumentsFTR Series Other Related Documents 03FTR Series Other Related Documents 01+2

Technical Specifications

Parameters and characteristics for this part

SpecificationFTR-110-02-L-D-06
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Length - Mating0.1 in
Contact Length - Mating2.54 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3.1 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.1 in
Insulation Height2.54 mm
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions20
Number of Positions Loaded19
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
ShroudingUnshrouded
TerminationSolder

FTR-110 Series

Headers & Wire Housings Surface Mount Micro Header, 0.050" x 0.100" Pitch

...
PartRow Spacing - Mating [x]Row Spacing - Mating [x]Contact ShapeContact MaterialOperating Temperature [Min]Operating Temperature [Max]Insulation ColorContact Finish Thickness - MatingContact Finish Thickness - MatingPitch - MatingPitch - MatingNumber of RowsNumber of Positions LoadedNumber of PositionsContact TypeMounting TypeContact Finish - PostShroudingCurrent Rating (Amps)Insulation MaterialTerminationContact Length - MatingContact Length - MatingInsulation HeightInsulation HeightFastening TypeContact Finish - MatingMaterial Flammability RatingConnector TypeNumber of Positions LoadedFeaturesContact Length - Mating [x]Contact Finish Thickness - PostContact Finish Thickness - Post
Samtec Inc.
FTR-111-03-L-D-TR
2.54 mm
0.1 in
Square
Phosphor Bronze
-55 °C
125 °C
Black
10 çin
0.25 çm
0.05 in
1.27 mm
2
All
22 positions
Male Pin
Surface Mount
Tin
Unshrouded
3.1 A
Liquid Crystal Polymer (LCP)
Solder
0.125 in
3.18 mm
0.1 in
2.54 mm
Push-Pull
Gold
UL94 V-0
Header
Samtec Inc.
FTR-110-03-S-D
2.54 mm
0.1 in
Square
Phosphor Bronze
-55 °C
125 °C
Black
30 Áin
0.76 Ám
0.05 in
1.27 mm
2
All
20
Male Pin
Surface Mount
Tin
Unshrouded
3.1 A
Liquid Crystal Polymer (LCP)
Solder
0.125 in
3.18 mm
0.1 in
2.54 mm
Push-Pull
Gold
UL94 V-0
Header
Samtec Inc.
FTR-110-51-S-D-06
2.54 mm
0.1 in
Square
Phosphor Bronze
-55 °C
125 °C
Black
30 Áin
0.76 Ám
0.05 in
1.27 mm
2
20
Male Pin
Surface Mount
Tin
Unshrouded
3.1 A
Liquid Crystal Polymer (LCP)
Solder
0.19 "
4.83 mm
0.1 in
2.54 mm
Push-Pull
Gold
UL94 V-0
Header
19
Samtec Inc.
FTR-110-01-L-D-A
2.54 mm
0.1 in
Square
Phosphor Bronze
-55 °C
125 °C
Black
10 çin
0.25 çm
0.05 in
1.27 mm
2
All
20
Male Pin
Surface Mount
Tin
Unshrouded
3.1 A
Liquid Crystal Polymer (LCP)
Solder
5.84 mm
0.1 in
2.54 mm
Push-Pull
Gold
UL94 V-0
Header
Board Guide
0.23 in
Samtec Inc.
FTR-110-52-L-D-P
2.54 mm
0.1 in
Square
Phosphor Bronze
-55 °C
125 °C
Black
10 çin
0.25 çm
0.05 in
1.27 mm
2
All
20
Male Pin
Surface Mount
Tin
Unshrouded
3.1 A
Liquid Crystal Polymer (LCP)
Solder
0.205 in
5.21 mm
0.1 in
2.54 mm
Push-Pull
Gold
UL94 V-0
Header
Pick and Place
Samtec Inc.
FTR-110-02-L-D
2.54 mm
0.1 in
Square
Phosphor Bronze
-55 °C
125 °C
Black
10 çin
0.25 çm
0.05 in
1.27 mm
2
All
20
Male Pin
Surface Mount
Tin
Unshrouded
3.1 A
Liquid Crystal Polymer (LCP)
Solder
0.1 in
2.54 mm
0.1 in
2.54 mm
Push-Pull
Gold
UL94 V-0
Header
Samtec Inc.
FTR-110-02-L-D-06
2.54 mm
0.1 in
Square
Phosphor Bronze
-55 °C
125 °C
Black
10 çin
0.25 çm
0.05 in
1.27 mm
2
20
Male Pin
Surface Mount
Tin
Unshrouded
3.1 A
Liquid Crystal Polymer (LCP)
Solder
0.1 in
2.54 mm
0.1 in
2.54 mm
Push-Pull
Gold
UL94 V-0
Header
19
Samtec Inc.
FTR-130-01-L-D-A-P
2.54 mm
0.1 in
Square
Phosphor Bronze
-55 °C
125 °C
Black
10 çin
0.25 çm
0.05 in
1.27 mm
2
All
60
Male Pin
Surface Mount
Tin
Unshrouded
3.1 A
Liquid Crystal Polymer (LCP)
Solder
5.84 mm
0.1 in
2.54 mm
Push-Pull
Gold
UL94 V-0
Header
Board Guide
Pick and Place
0.23 in
Samtec Inc.
FTR-110-03-G-D-P
2.54 mm
0.1 in
Square
Phosphor Bronze
-55 °C
125 °C
Black
10 çin
0.25 çm
0.05 in
1.27 mm
2
All
20
Male Pin
Surface Mount
Gold
Unshrouded
3.1 A
Liquid Crystal Polymer (LCP)
Solder
0.125 in
3.18 mm
0.1 in
2.54 mm
Push-Pull
Gold
UL94 V-0
Header
Pick and Place
3 µin
0.076 µm
Samtec Inc.
FTR-110-54-G-D
2.54 mm
0.1 in
Square
Phosphor Bronze
-55 °C
125 °C
Black
10 çin
0.25 çm
0.05 in
1.27 mm
2
All
20
Male Pin
Surface Mount
Gold
Unshrouded
3.1 A
Liquid Crystal Polymer (LCP)
Solder
0.335 in
8.51 mm
0.1 in
2.54 mm
Push-Pull
Gold
UL94 V-0
Header
3 µin
0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 3.66
10$ 3.11
100$ 2.64
500$ 2.36
1000$ 2.24

Description

General part information

FTR-110 Series

Headers & Wire Housings Surface Mount Micro Header, 0.050" x 0.100" Pitch
