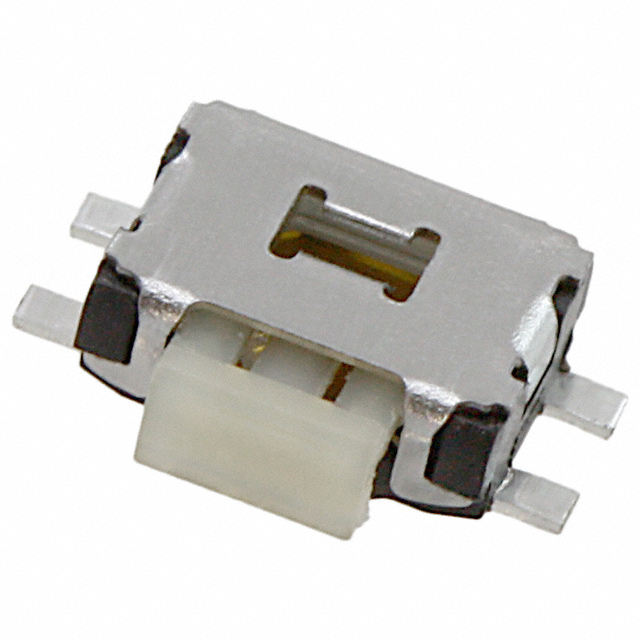

TL1014BF160QG
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL1014BF160QG
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL1014BF160QG |
|---|---|
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Orientation | Side Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Features | Board Guide |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline [x] | 6.4 mm |
| Outline [y] | 3.5 mm |
| Switch Function | Off-Mom |
| Switch Travel [custom] | 0.3 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.51 | |||
| 25 | $ 0.49 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 10 | $ 0.51 | |||
| 25 | $ 0.49 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.35 | |||
| Tape & Reel (TR) | 3300 | $ 0.35 | ||
Description
General part information
TL1014 Series
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
