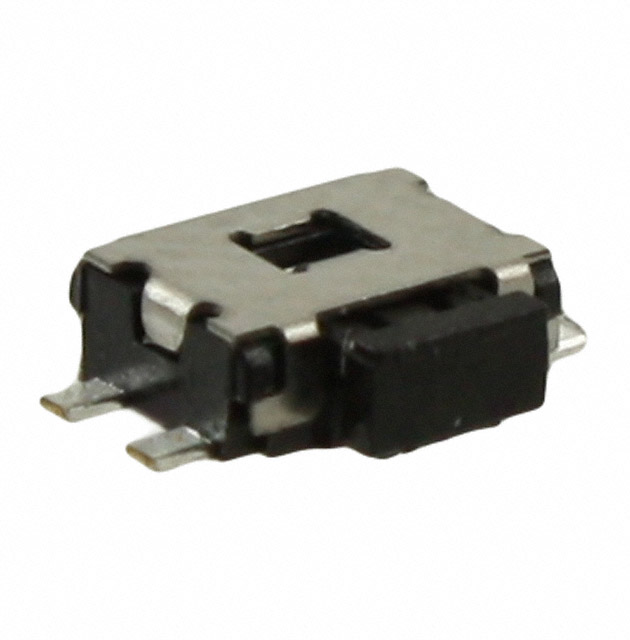

TL1014BF180QG

Obsolete

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operating Force	Illumination	Mechanical Life	Actuator Type	Termination Style	Actuator Material	Contact Rating @ Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Outline [x]	Outline [y]	Switch Function	Actuator Orientation	Circuit	Features	Switch Travel [custom]	Switch Travel
E-Switch TL1014BF180QG	Surface Mount Right Angle	180 gf	Non-Illuminated	100000 Cycles	Rectangular Button	Gull Wing	Nylon 4/6 Polyamide (PA46)	0.05 A 12 VDC	-20 C	70 °C	6.4 mm	3.5 mm	Off-Mom	Side Actuated	SPST-NO	Board Guide	0.3 mm
E-Switch TL1014AF160QG	Surface Mount Right Angle		Non-Illuminated	100000 Cycles	Rectangular Button	Gull Wing	Nylon 4/6 Polyamide (PA46)	0.05 A 12 VDC	-20 C	70 °C	6.4 mm	3.5 mm	Off-Mom	Side Actuated	SPST-NO		0.3 mm
E-Switch TL1014BF160QGBLKACT	Surface Mount Right Angle		Non-Illuminated	200000 Cycles	Rectangular Button	Gull Wing		0.05 A 12 VDC	-40 °C	85 °C	6.4 mm	3.5 mm	Off-Mom	Side Actuated	SPST-NO			0.25 mm
E-Switch TL1014BF160QG	Surface Mount Right Angle		Non-Illuminated	100000 Cycles	Rectangular Button	Gull Wing	Nylon 4/6 Polyamide (PA46)	0.05 A 12 VDC	-20 C	70 °C	6.4 mm	3.5 mm	Off-Mom	Side Actuated	SPST-NO	Board Guide	0.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
