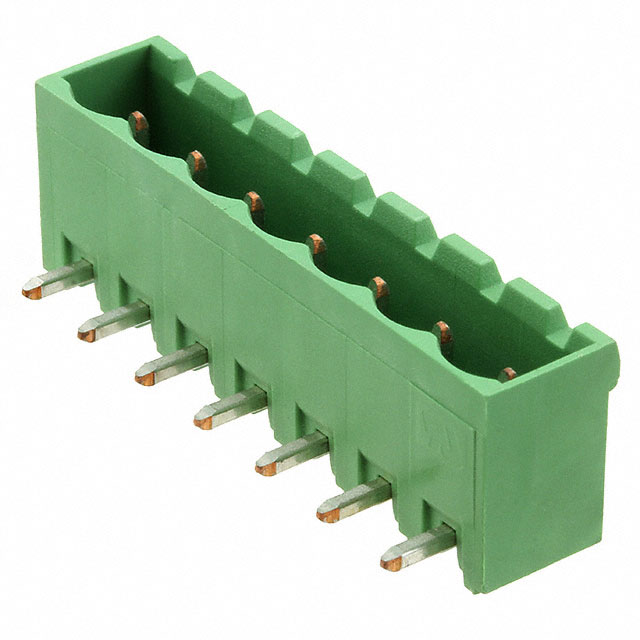

TERM BLOCK HDR 7POS 90DEG 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

796638-7

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 7POS 90DEG 5.08MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.79
		300	$ 1.78
		500	$ 1.62
		1000	$ 1.45
		2500	$ 1.34
		5000	$ 1.28

Description

General part information

796638 Series

7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

No documents available

Specification	796638-7	796638 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Features	-	Positions Stamped
Header Orientation	90°, Right Angle	90°, Right Angle
Insulation Height	8.36 mm	8.36 mm
Insulation Height	0.329 in	0.329 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	7	2 - 23
Number of Positions	-	16
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	7	2 - 23
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

Part

Material Flammability Rating

Positions Per Level

Insulation Height

Color

Contact Material

Contact Tail Length

Voltage - UL

Termination Style

Mounting Type

Header Orientation

Operating Temperature [Min]

Operating Temperature [Max]

Contact Mating Finish

Number of Levels

Type

Pitch [x]

Number of Positions

Features

TE Connectivity AMP Connectors

796638-5
