1-796638-6

Active

TE Connectivity AMP Connectors

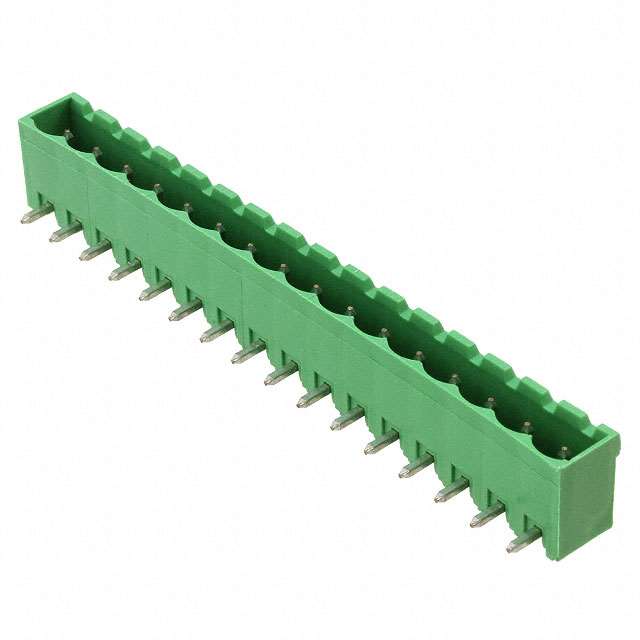

TERM BLOCK HDR 16POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-796638-6

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 16POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-796638-6	796638 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Features	-	Positions Stamped
Header Orientation	90°, Right Angle	90°, Right Angle
Insulation Height	8.36 mm	8.36 mm
Insulation Height	0.329 in	0.329 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	16	16
Number of Positions	-	2 - 23
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	16	2 - 23
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

796638 Series

TERM BLOCK HDR 5POS 90DEG 5.08MM

Part	Material Flammability Rating	Positions Per Level	Insulation Height	Insulation Height	Color	Contact Material	Contact Tail Length	Contact Tail Length	Voltage - UL	Termination Style	Mounting Type	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Number of Levels	Type	Pitch [x]	Pitch [x]	Number of Positions	Number of Positions	Features
TE Connectivity AMP Connectors 796638-5	UL94 V-0	5	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm
TE Connectivity AMP Connectors 2-796638-3	UL94 V-0	23	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	23
TE Connectivity AMP Connectors 796638-7	UL94 V-0	7	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	7
TE Connectivity AMP Connectors 2-796638-0	UL94 V-0	20	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	20
TE Connectivity AMP Connectors 1-796638-6	UL94 V-0	16	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm		16
TE Connectivity AMP Connectors 1-796638-3	UL94 V-0	13	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	13
TE Connectivity AMP Connectors 796638-3	UL94 V-0	3	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm
TE Connectivity AMP Connectors 2-796638-6	UL94 V-0	10	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	10		Positions Stamped
TE Connectivity AMP Connectors 796638-2	UL94 V-0	2	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	2
TE Connectivity AMP Connectors 796638-9	UL94 V-0	9	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 4.73

Description

General part information

796638 Series

16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
