796638-3

Active

TE Connectivity AMP Connectors

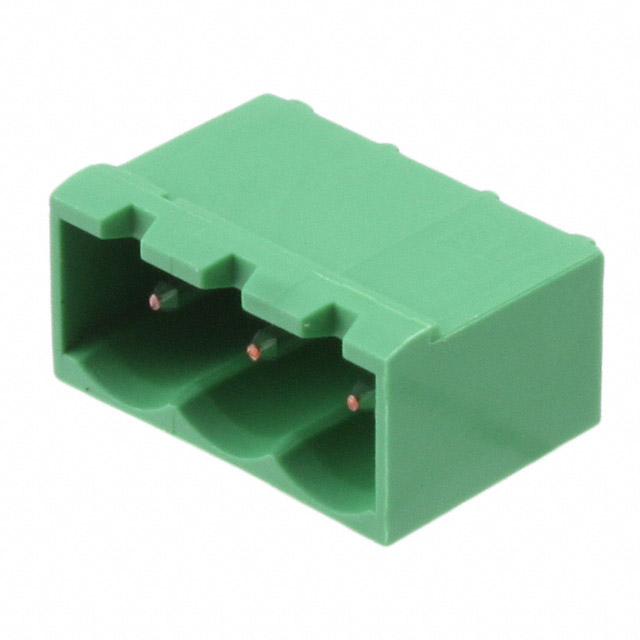

TERM BLOCK HDR 3POS 90DEG 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796638-3

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 3POS 90DEG 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.90
		10	$ 0.86
		25	$ 0.82
		50	$ 0.81
		200	$ 0.71
		400	$ 0.68
		600	$ 0.65
		1000	$ 0.56
		5000	$ 0.48

Description

General part information

796638 Series

3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	796638-3	796638 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Features	-	Positions Stamped
Header Orientation	90°, Right Angle	90°, Right Angle
Insulation Height	8.36 mm	8.36 mm
Insulation Height	0.329 in	0.329 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	-	2 - 23
Number of Positions	-	16
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	3	2 - 23
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

Part

Material Flammability Rating

Positions Per Level

Insulation Height

Color

Contact Material

Contact Tail Length

Voltage - UL

Termination Style

Mounting Type

Header Orientation

Operating Temperature [Min]

Operating Temperature [Max]

Contact Mating Finish

Number of Levels

Type

Pitch [x]

Number of Positions

Features

TE Connectivity AMP Connectors

796638-5

UL94 V-0

8.36 mm

0.329 in

Green

Copper Alloy

3.5 mm

0.138 in

300 V

Solder

Through Hole

90°, Right Angle

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

0.2 in

5.08 mm

TE Connectivity AMP Connectors

2-796638-3

UL94 V-0

8.36 mm

0.329 in

Green

Copper Alloy

3.5 mm

0.138 in

300 V

Solder

Through Hole

90°, Right Angle

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

0.2 in

5.08 mm

TE Connectivity AMP Connectors

796638-7

UL94 V-0

8.36 mm

0.329 in

Green

Copper Alloy

3.5 mm

0.138 in

300 V

Solder

Through Hole

90°, Right Angle

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

0.2 in

5.08 mm

TE Connectivity AMP Connectors

2-796638-0

UL94 V-0

8.36 mm

0.329 in

Green

Copper Alloy

3.5 mm

0.138 in

300 V

Solder

Through Hole

90°, Right Angle

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

0.2 in

5.08 mm

TE Connectivity AMP Connectors

1-796638-6

UL94 V-0

8.36 mm

0.329 in

Green

Copper Alloy

3.5 mm

0.138 in

300 V

Solder

Through Hole

90°, Right Angle

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

0.2 in

5.08 mm

TE Connectivity AMP Connectors

1-796638-3

UL94 V-0

8.36 mm

0.329 in

Green

Copper Alloy

3.5 mm

0.138 in

300 V

Solder

Through Hole

90°, Right Angle

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

0.2 in

5.08 mm

TE Connectivity AMP Connectors

796638-3

UL94 V-0

8.36 mm

0.329 in

Green

Copper Alloy

3.5 mm

0.138 in

300 V

Solder

Through Hole

90°, Right Angle

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

0.2 in

5.08 mm

TE Connectivity AMP Connectors

2-796638-6

UL94 V-0

8.36 mm

0.329 in

Green

Copper Alloy

3.5 mm

0.138 in

300 V

Solder

Through Hole

90°, Right Angle

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

0.2 in

5.08 mm

Positions Stamped

TE Connectivity AMP Connectors

796638-2

UL94 V-0

8.36 mm

0.329 in

Green

Copper Alloy

3.5 mm

0.138 in

300 V

Solder

Through Hole

90°, Right Angle

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

0.2 in

5.08 mm

TE Connectivity AMP Connectors

796638-9

UL94 V-0

8.36 mm

0.329 in

Green

Copper Alloy

3.5 mm

0.138 in

300 V

Solder

Through Hole

90°, Right Angle

-40 °C

110 °C

Tin

Header, Male Pins, Shrouded (4 Side)

0.2 in

5.08 mm

Part	Material Flammability Rating	Positions Per Level	Insulation Height	Insulation Height	Color	Contact Material	Contact Tail Length	Contact Tail Length	Voltage - UL	Termination Style	Mounting Type	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Number of Levels	Type	Pitch [x]	Pitch [x]	Number of Positions	Number of Positions	Features
TE Connectivity AMP Connectors 796638-5	UL94 V-0	5	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm
TE Connectivity AMP Connectors 2-796638-3	UL94 V-0	23	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	23
TE Connectivity AMP Connectors 796638-7	UL94 V-0	7	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	7
TE Connectivity AMP Connectors 2-796638-0	UL94 V-0	20	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	20
TE Connectivity AMP Connectors 1-796638-6	UL94 V-0	16	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm		16
TE Connectivity AMP Connectors 1-796638-3	UL94 V-0	13	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	13
TE Connectivity AMP Connectors 796638-3	UL94 V-0	3	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm
TE Connectivity AMP Connectors 2-796638-6	UL94 V-0	10	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	10		Positions Stamped
TE Connectivity AMP Connectors 796638-2	UL94 V-0	2	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	2
TE Connectivity AMP Connectors 796638-9	UL94 V-0	9	8.36 mm	0.329 in	Green	Copper Alloy	3.5 mm	0.138 in	300 V	Solder	Through Hole	90°, Right Angle	-40 °C	110 °C	Tin	1	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	9
