BTE-100-01-F-D-EM2

Active

Samtec Inc.

CONN HDR 200POS EDGE MNT GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

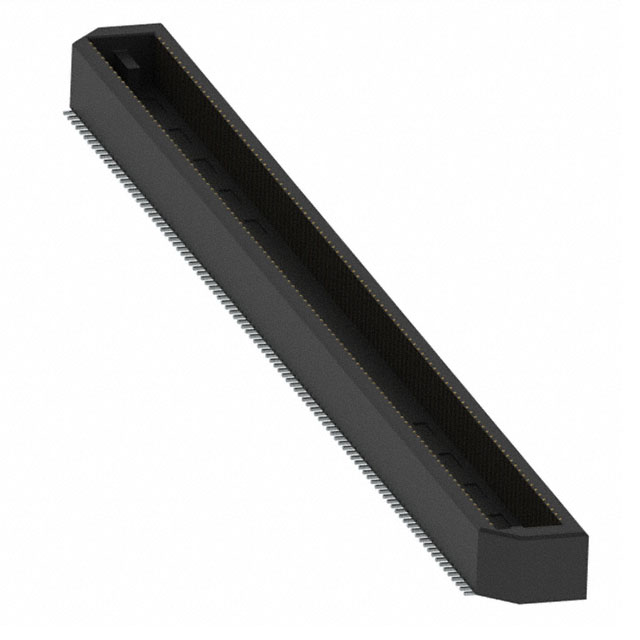

BTE-100-01-F-D-EM2

Active

Samtec Inc.

CONN HDR 200POS EDGE MNT GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTE-100-01-F-D-EM2

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Mounting Type	Board Edge, Straddle Mount
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BTE-100 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Features	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Mated Stacking Heights [z]	Height Above Board	Height Above Board	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTE-100-02-F-D-A	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	Board Guide	Surface Mount	Gold	0.8 mm	0.031 in	8.03 mm	7.06 mm	0.278 "
Samtec Inc. BTE-100-03-F-D-A-K	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	Board Guide	Surface Mount	Gold	0.8 mm	0.031 in				11.03 mm	0.396 in	10.06 mm
Samtec Inc. BTE-100-01-H-D-A	30 Áin	0.76 Ám	Header Outer Shroud Contacts	2	Board Guide	Surface Mount	Gold	0.8 mm	0.031 in		4.06 mm	0.16 in	5.03 mm
Samtec Inc. BTE-100-05-L-D-A	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	Board Guide	Surface Mount	Gold	0.8 mm	0.031 in				19.1 mm	0.719 in	18.26 mm
Samtec Inc. BTE-100-01-F-D-EM2	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2		Board Edge Straddle Mount	Gold	0.8 mm	0.031 in
Samtec Inc. BTE-100-01-F-D-A	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	Board Guide	Surface Mount	Gold	0.8 mm	0.031 in		4.06 mm	0.16 in	5.03 mm
Samtec Inc. BTE-100-04-L-D-A	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	Board Guide	Surface Mount	Gold	0.8 mm	0.031 in		15.27 mm	0.601 in	16.1 mm
Samtec Inc. BTE-100-05-F-D-A	3 Áin	0.076 Ám	Header Outer Shroud Contacts	2	Board Guide	Surface Mount	Gold	0.8 mm	0.031 in				19.1 mm	0.719 in	18.26 mm
Samtec Inc. BTE-100-01-L-D-A	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	Board Guide	Surface Mount	Gold	0.8 mm	0.031 in		4.06 mm	0.16 in	5.03 mm
Samtec Inc. BTE-100-07-L-D-A	10 Áin	0.25 Ám	Header Outer Shroud Contacts	2	Board Guide	Surface Mount	Gold	0.8 mm	0.031 in		24.23 mm	0.954 in	25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6	$ 16.80

Description

General part information

BTE-100 Series

200 Position Connector Header, Outer Shroud Contacts Board Edge, Straddle Mount Gold

Documents

Technical documentation and resources
