307-025-458-178
ActiveEDAC Inc.

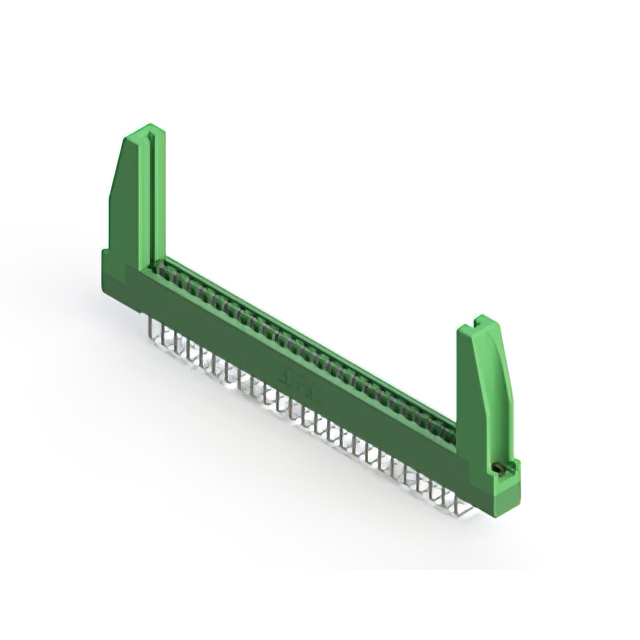

CONN EDGE SGL FML 25POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-025-458-178 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
307-025 Series
...
| Part | Number of Rows | Gender | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Termination | Termination Rows | Mounting Type | Number of Positions/Bay/Row [custom] | Color | Pitch [x] | Pitch [x] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Female | Non Specified - Single Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Wire Wrap | 1 | Through Hole | 25 | Green | 0.156 in | 3.96 mm | Semi Bellows | 10 Áin | 0.25 Ám | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | ||
EDAC Inc. | 1 | Female | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 1 | Through Hole Right Angle | 25 | Green | 0.156 in | 3.96 mm | Semi Bellows | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Card Guides | |||||
EDAC Inc. | 2 | Female | Non Specified - Dual Edge | Wire Wrap | 1 | Through Hole Right Angle | 25 | Green | 0.156 in | 3.96 mm | Semi Bellows | 10 Áin | 0.25 Ám | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 50 | ||||
EDAC Inc. | 1 | Female | Non Specified - Single Edge | Solder | 1 | Through Hole Right Angle | 25 | Green | 0.156 in | 3.96 mm | Semi Bellows | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | |||||||
EDAC Inc. | 1 | Female | Non Specified - Single Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Solder | 1 | Through Hole | 25 | Green | 0.156 in | 3.96 mm | Semi Bellows | 10 Áin | 0.25 Ám | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | ||
EDAC Inc. | 2 | Female | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Wire Wrap | 1 | Through Hole Right Angle | 25 | Green | 0.156 in | 3.96 mm | Semi Bellows | 10 Áin | 0.25 Ám | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 50 | |
EDAC Inc. | 1 | Female | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 1 | Through Hole Right Angle | 25 | Green | 0.156 in | 3.96 mm | Semi Bellows | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Card Guides | |||||
EDAC Inc. | 2 | Female | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Solder Eyelet(s) | 1 | Surface Mount | 25 | Green | 0.156 in | 3.96 mm | Semi Bellows | 10 Áin | 0.25 Ám | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 50 | |
EDAC Inc. | 1 | Female | Non Specified - Single Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Solder | 1 | Through Hole | 25 | Green | 0.156 in | 3.96 mm | Semi Bellows | 10 Áin | 0.25 Ám | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | ||
EDAC Inc. | 2 | Female | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Wire Wrap | 1 | Through Hole Right Angle | 25 | Green | 0.156 in | 3.96 mm | Semi Bellows | 10 Áin | 0.25 Ám | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 50 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 17.72 | |
Description
General part information
307-025 Series
25 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
