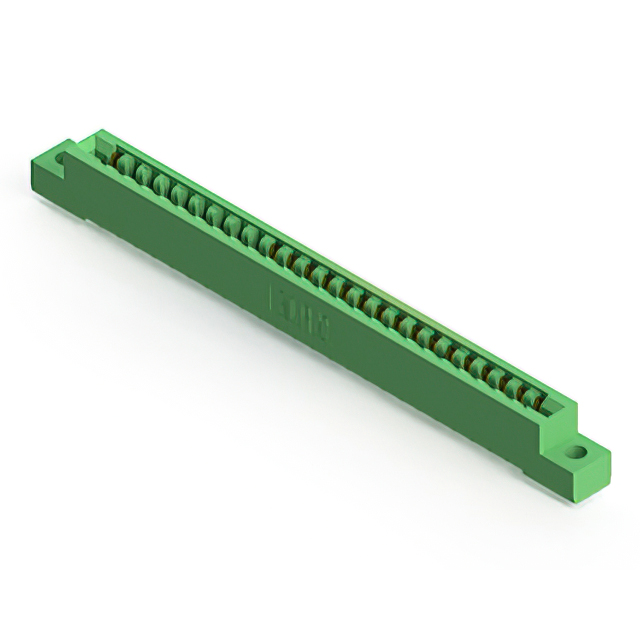

307-025-531-102

Active

EDAC Inc.

CONN EDGE SGL FMALE 25POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCard Edge Brochure Datasheet +1

307-025-531-102

Active

EDAC Inc.

CONN EDGE SGL FMALE 25POS 0.156

Deep-Dive with AI

DocumentsCard Edge Brochure Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-025-531-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	25
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-025 Series

...

Part	Number of Rows	Gender	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Termination	Termination Rows	Mounting Type	Number of Positions/Bay/Row [custom]	Color	Pitch [x]	Pitch [x]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Features	Number of Positions
EDAC Inc. 307-025-547-102	1	Female	Non Specified - Single Edge	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Wire Wrap	1	Through Hole	25	Green	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Single
EDAC Inc. 307-025-458-178	1	Female	Non Specified - Single Edge			4-40 Flush Mount Threaded Insert Top Opening	Solder	1	Through Hole Right Angle	25	Green	0.156 in	3.96 mm	Semi Bellows			Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Card Guides
EDAC Inc. 307-025-557-101	2	Female	Non Specified - Dual Edge				Wire Wrap	1	Through Hole Right Angle	25	Green	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual		50
EDAC Inc. 307-025-459-101	1	Female	Non Specified - Single Edge				Solder	1	Through Hole Right Angle	25	Green	0.156 in	3.96 mm	Semi Bellows			Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Single
EDAC Inc. 307-025-531-102	1	Female	Non Specified - Single Edge	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	1	Through Hole	25	Green	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Single
EDAC Inc. 307-025-557-102	2	Female	Non Specified - Dual Edge	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Wire Wrap	1	Through Hole Right Angle	25	Green	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual		50
EDAC Inc. 307-025-459-158	1	Female	Non Specified - Single Edge			4-40 Flush Mount Threaded Insert Top Opening	Solder	1	Through Hole Right Angle	25	Green	0.156 in	3.96 mm	Semi Bellows			Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Card Guides
EDAC Inc. 307-025-554-112	2	Female	Non Specified - Dual Edge	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Solder Eyelet(s)	1	Surface Mount	25	Green	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual		50
EDAC Inc. 307-025-525-102	1	Female	Non Specified - Single Edge	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	1	Through Hole	25	Green	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Single
EDAC Inc. 307-025-557-112	2	Female	Non Specified - Dual Edge	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Wire Wrap	1	Through Hole Right Angle	25	Green	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual		50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 14.60

Description

General part information

307-025 Series

25 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
