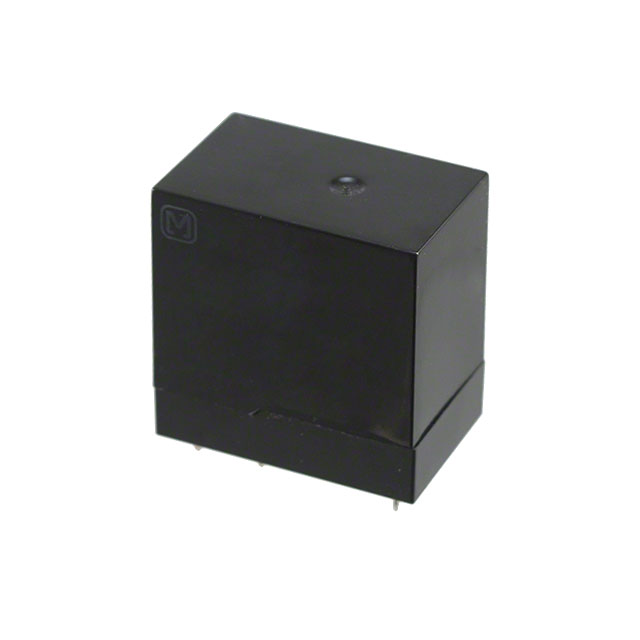

JC2AF-DC48V-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPST 10A 48V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGeneral Appl Guidelines Datasheet +1

JC2AF-DC48V-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPST 10A 48V

Deep-Dive with AI

DocumentsGeneral Appl Guidelines Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JC2AF-DC48V-F

Approval Agency	TUV, VDE, CSA, UR
Coil Current	20.8 mA
Coil Resistance	2.3 kOhms
Coil Type	Non Latching
Coil Voltage	48 VDC
Contact Form	DPST-NO (2 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A
Load - Max Switching [Max]	2500 VA
Mounting Type	Through Hole
Must Operate Voltage	38.4 VDC
Must Release Voltage	4.8 VDC
Operate Time	30 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-50 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC
Termination Style	PC Pin

JC2AF Series

Part	Coil Type	Must Release Voltage	Switching Voltage	Approval Agency	Must Operate Voltage	Contact Material	Coil Voltage	Contact Rating (Current)	Load - Max Switching [Max]	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Operate Time	Contact Form	Coil Resistance	Coil Current	Release Time
Panasonic Electric Works JC2AF-S-DC12V-F	Non Latching	1.2 VDC	250 VAC	CSA TUV UR VDE	9.6 VDC	Silver Tin Oxide (AgSnO)	12 VDC	10 A	2500 VA	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	144 Ohms	83.3 mA	10 ms
Panasonic Electric Works JC2AF-TM-DC6V-F	Non Latching	0.6 VDC	250 VAC	CSA TUV UR VDE	4.8 VDC	Silver Tin Oxide (AgSnO)		10 A	2500 VA	Quick Connect - 0.187" (4.7mm)	Chassis Mount	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	36 Ohms	167 mA	10 ms
Panasonic Electric Works JC2AF-TM-DC12V	Non Latching	1.2 VDC	250 VAC	CSA TUV UR VDE	9.6 VDC	Silver Alloy	12 VDC	10 A	2500 VA	Quick Connect - 0.187" (4.7mm)	Chassis Mount	60 °C	-50 °C	General Purpose	15 ms	DPST-NO (2 Form A)	144 Ohms	83.3 mA	2 ms
Panasonic Electric Works JC2AF-S-DC6V-F	Non Latching	0.6 VDC	250 VAC	CSA TUV UR VDE	4.8 VDC	Silver Tin Oxide (AgSnO)		10 A	2500 VA	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	36 Ohms	167 mA	10 ms
Panasonic Electric Works JC2AF-DC48V-F	Non Latching	4.8 VDC	250 VAC	CSA TUV UR VDE	38.4 VDC	Silver Tin Oxide (AgSnO)	48 VDC	10 A	2500 VA	PC Pin	Through Hole	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	2.3 kOhms	20.8 mA	10 ms
Panasonic Electric Works JC2AF-DC24V-F	Non Latching	2.4 VDC	250 VAC	CSA TUV UR VDE	19.2 VDC	Silver Tin Oxide (AgSnO)	24 VDC	10 A	2500 VA	PC Pin	Through Hole	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	576 Ohms	41.6 mA	10 ms
Panasonic Electric Works JC2AF-TM-DC12V-F	Non Latching	1.2 VDC	250 VAC	CSA TUV UR VDE	9.6 VDC	Silver Tin Oxide (AgSnO)	12 VDC	10 A	2500 VA	Quick Connect - 0.187" (4.7mm)	Chassis Mount	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	144 Ohms	83.3 mA	10 ms
Panasonic Electric Works JC2AF-DC6V-F	Non Latching	0.6 VDC	250 VAC	CSA TUV UR VDE	4.8 VDC	Silver Tin Oxide (AgSnO)		10 A	2500 VA	PC Pin	Through Hole	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	36 Ohms	167 mA	10 ms
Panasonic Electric Works JC2AF-S-DC24V	Non Latching	2.4 VDC	250 VAC	CSA TUV UR VDE	19.2 VDC	Silver Alloy	24 VDC	10 A	2500 VA	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	60 °C	-50 °C	General Purpose	15 ms	DPST-NO (2 Form A)	576 Ohms	41.6 mA	2 ms
