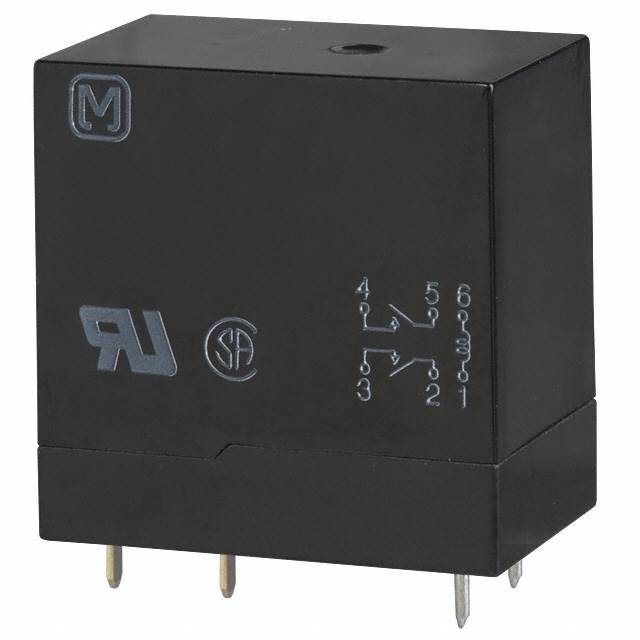

JC2AF-S-DC24V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPST 10A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

JC2AF-S-DC24V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE DPST 10A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JC2AF-S-DC24V

Approval Agency	TUV, VDE, CSA, UR
Coil Current	41.6 mA
Coil Resistance	576 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPST-NO (2 Form A)
Contact Material	Silver Alloy
Contact Rating (Current)	10 A
Load - Max Switching [Max]	2500 VA
Mounting Type	Socketable
Must Operate Voltage	19.2 VDC
Must Release Voltage	2.4 VDC
Operate Time	15 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-50 °C
Relay Type	General Purpose
Release Time	2 ms
Switching Voltage	250 VAC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

JC2AF Series

Part	Coil Type	Must Release Voltage	Switching Voltage	Approval Agency	Must Operate Voltage	Contact Material	Coil Voltage	Contact Rating (Current)	Load - Max Switching [Max]	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Operate Time	Contact Form	Coil Resistance	Coil Current	Release Time
Panasonic Electric Works JC2AF-S-DC12V-F	Non Latching	1.2 VDC	250 VAC	CSA TUV UR VDE	9.6 VDC	Silver Tin Oxide (AgSnO)	12 VDC	10 A	2500 VA	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	144 Ohms	83.3 mA	10 ms
Panasonic Electric Works JC2AF-TM-DC6V-F	Non Latching	0.6 VDC	250 VAC	CSA TUV UR VDE	4.8 VDC	Silver Tin Oxide (AgSnO)		10 A	2500 VA	Quick Connect - 0.187" (4.7mm)	Chassis Mount	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	36 Ohms	167 mA	10 ms
Panasonic Electric Works JC2AF-TM-DC12V	Non Latching	1.2 VDC	250 VAC	CSA TUV UR VDE	9.6 VDC	Silver Alloy	12 VDC	10 A	2500 VA	Quick Connect - 0.187" (4.7mm)	Chassis Mount	60 °C	-50 °C	General Purpose	15 ms	DPST-NO (2 Form A)	144 Ohms	83.3 mA	2 ms
Panasonic Electric Works JC2AF-S-DC6V-F	Non Latching	0.6 VDC	250 VAC	CSA TUV UR VDE	4.8 VDC	Silver Tin Oxide (AgSnO)		10 A	2500 VA	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	36 Ohms	167 mA	10 ms
Panasonic Electric Works JC2AF-DC48V-F	Non Latching	4.8 VDC	250 VAC	CSA TUV UR VDE	38.4 VDC	Silver Tin Oxide (AgSnO)	48 VDC	10 A	2500 VA	PC Pin	Through Hole	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	2.3 kOhms	20.8 mA	10 ms
Panasonic Electric Works JC2AF-DC24V-F	Non Latching	2.4 VDC	250 VAC	CSA TUV UR VDE	19.2 VDC	Silver Tin Oxide (AgSnO)	24 VDC	10 A	2500 VA	PC Pin	Through Hole	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	576 Ohms	41.6 mA	10 ms
Panasonic Electric Works JC2AF-TM-DC12V-F	Non Latching	1.2 VDC	250 VAC	CSA TUV UR VDE	9.6 VDC	Silver Tin Oxide (AgSnO)	12 VDC	10 A	2500 VA	Quick Connect - 0.187" (4.7mm)	Chassis Mount	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	144 Ohms	83.3 mA	10 ms
Panasonic Electric Works JC2AF-DC6V-F	Non Latching	0.6 VDC	250 VAC	CSA TUV UR VDE	4.8 VDC	Silver Tin Oxide (AgSnO)		10 A	2500 VA	PC Pin	Through Hole	60 °C	-50 °C	General Purpose	30 ms	DPST-NO (2 Form A)	36 Ohms	167 mA	10 ms
Panasonic Electric Works JC2AF-S-DC24V	Non Latching	2.4 VDC	250 VAC	CSA TUV UR VDE	19.2 VDC	Silver Alloy	24 VDC	10 A	2500 VA	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	60 °C	-50 °C	General Purpose	15 ms	DPST-NO (2 Form A)	576 Ohms	41.6 mA	2 ms
